Posted on Saturday, July 19, 2008 6:33 PM

A very popular two handed boat, many of us may have started our sailing lives in an Enterprise, and many are bought and sold each year. With a strong class association and good racing circuit, Enterprises are a good boat to choose, particularly if you're not nimble enough for a faster Laser or RS double hander.

They're durable, very forgiving, undemanding, and fairly easy to repair. Either made from GRP (fibreglass) or wood, there are any Enterprises around, particularly on Ebay. If you've just bought one and don't know how to rig it, or are thinking of buying one, then read on.

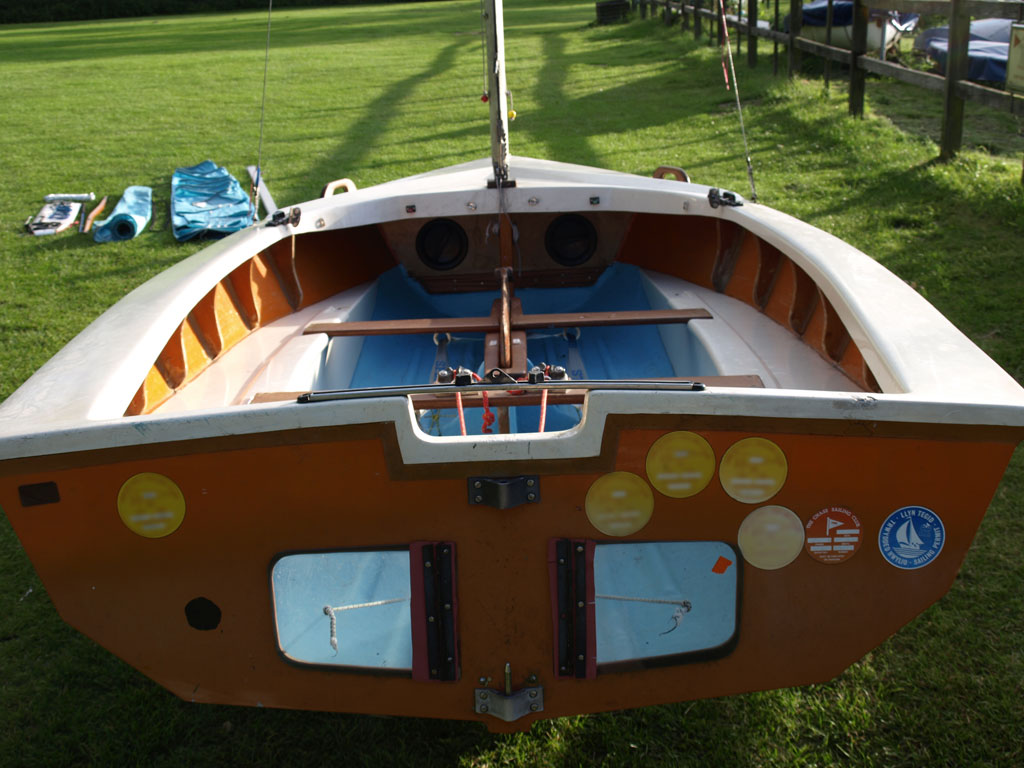

Photo 1, The Enterprise

Photo 1, The Enterprise

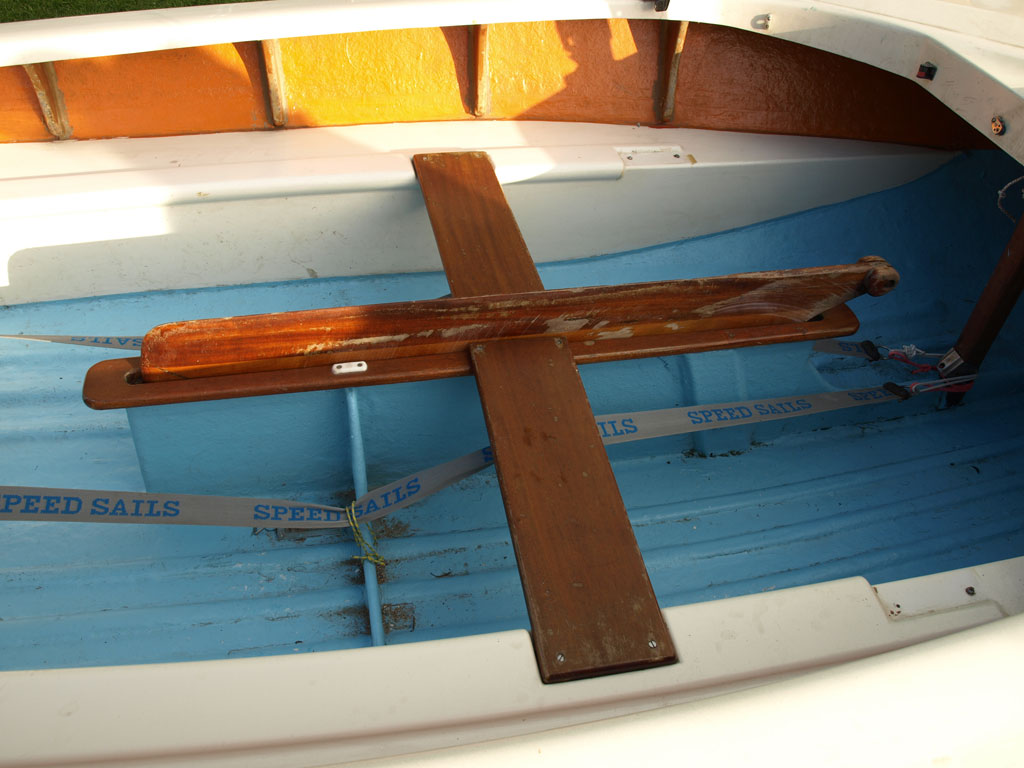

Photo 2, Seats and centreboard

Photo 2, Seats and centreboard

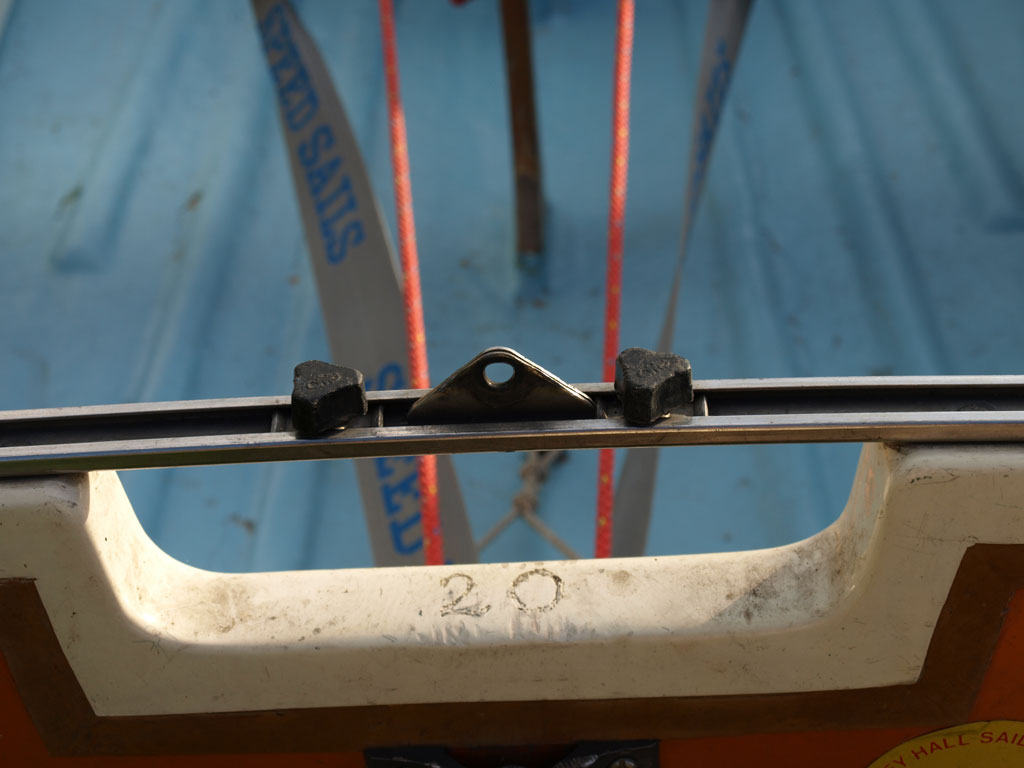

While the Enterprise is a restricted design class, due to them being manufactured by a number of makers, over the last 55 years many different configurations of Enterprise have been built, some with built in bouyancy tanks, some with bouyancy bags instead, some with a sealed under foredeck, some without, some with transom flaps, others with just self-bailers. The differences also extend into the rigging; we will try to cover some of the differences in the article, but this is written for a fibreglass hull, with internal bouyancy tanks.

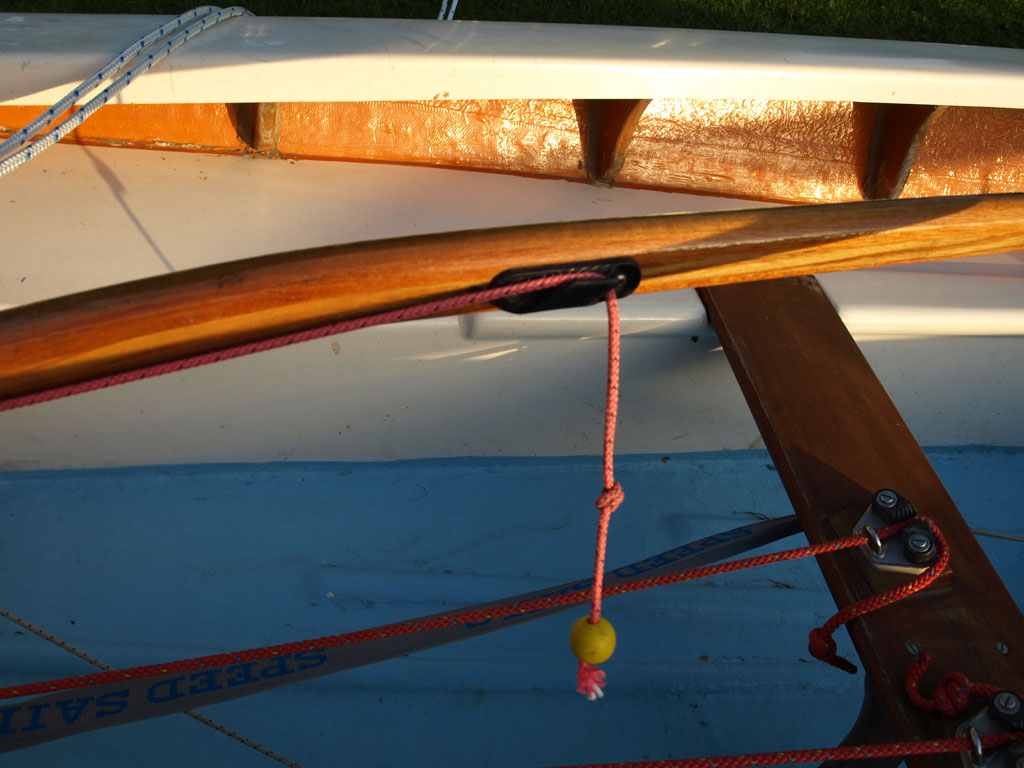

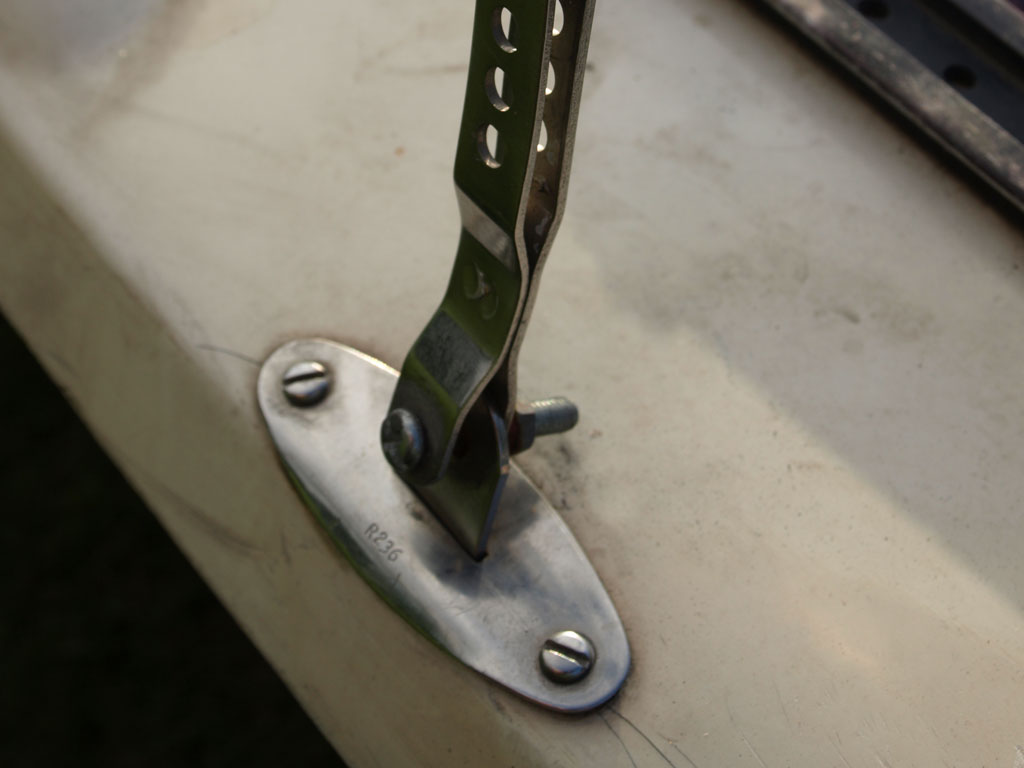

Photo 3, Toestrap adjusters

Photo 3, Toestrap adjusters

Photo 4, the Transom

Photo 4, the Transom

Photo 5, Vernier adjusters on the shroud

Photo 5, Vernier adjusters on the shroud

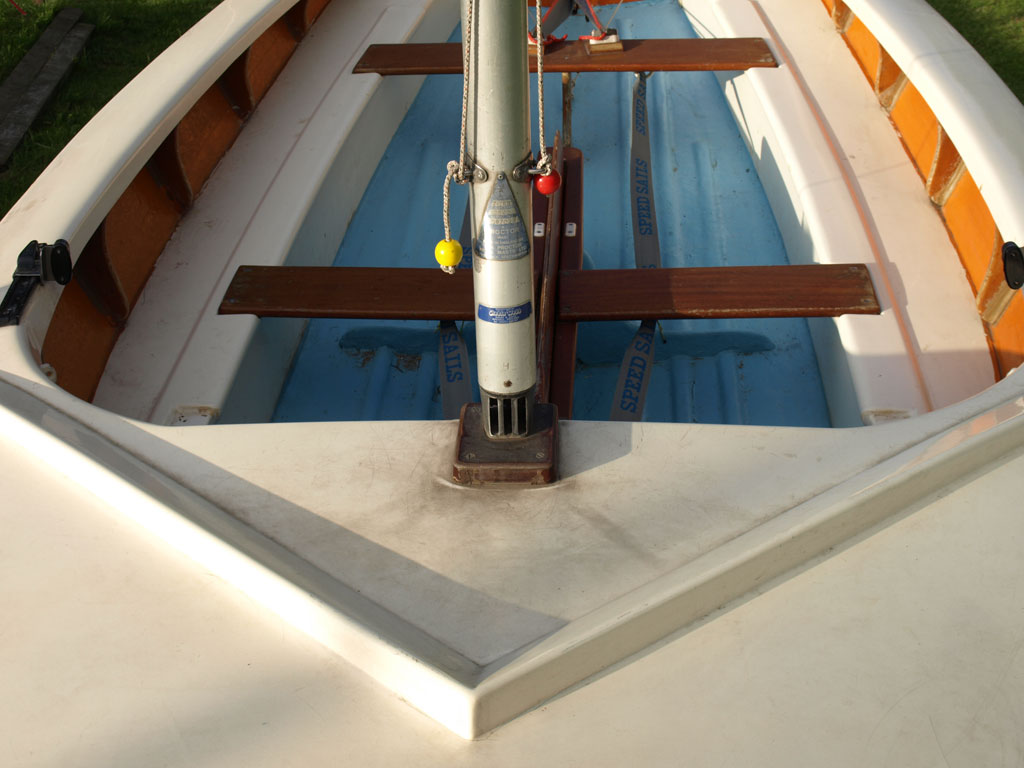

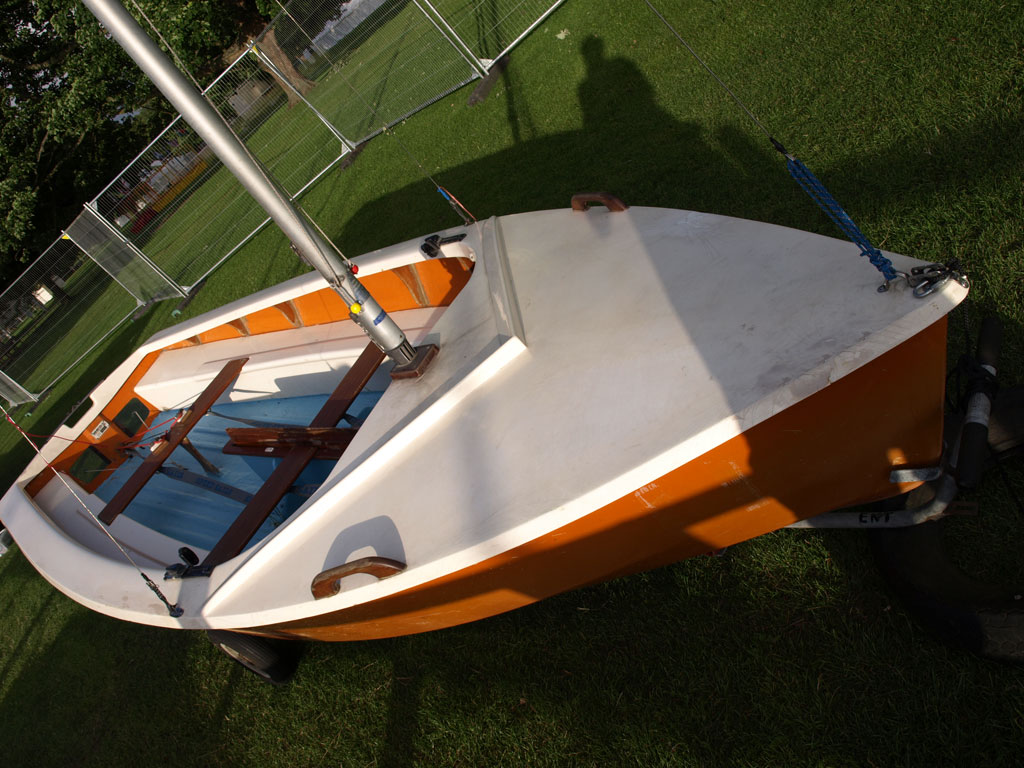

Photo 6, the foredeck and mast step

Photo 6, the foredeck and mast step

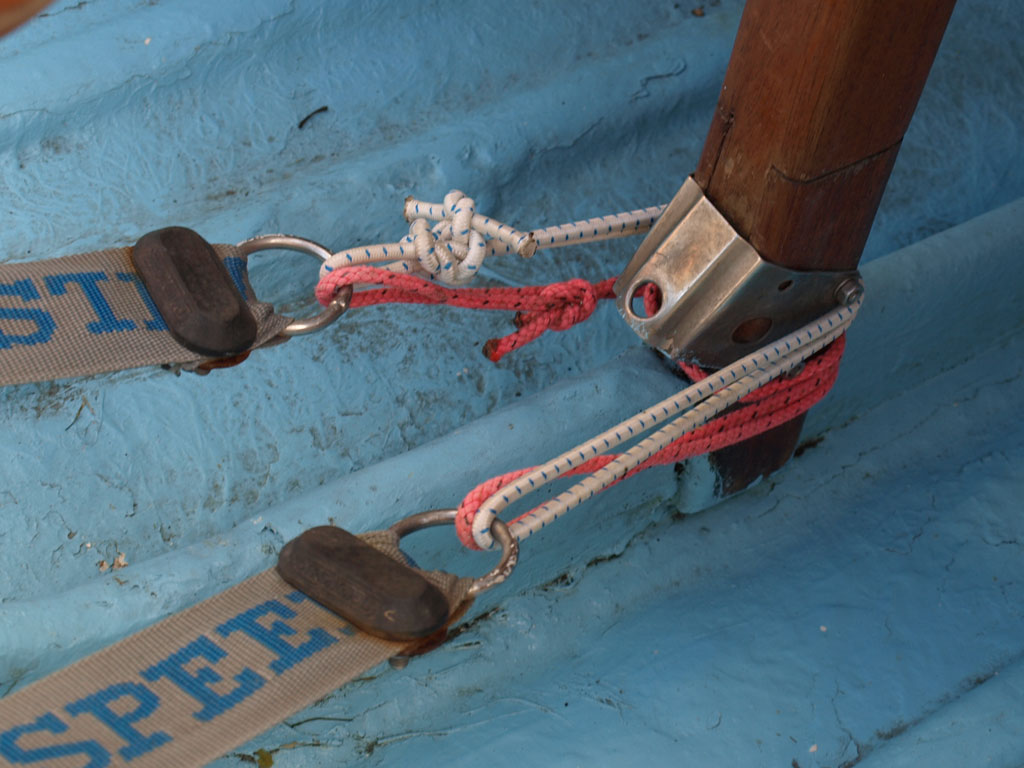

Chances are if you buy an Enterprise, it won't be disassembled to the point of a Topper or Laser. For that reason, we aren't going to completely disassemble the boat and put absolutely everything together, for example the toestraps, and the mast. We will do a later article on how to raise (step) a mast; if you need assistance on this, pretty much anyone at your sailing club should be able to help.

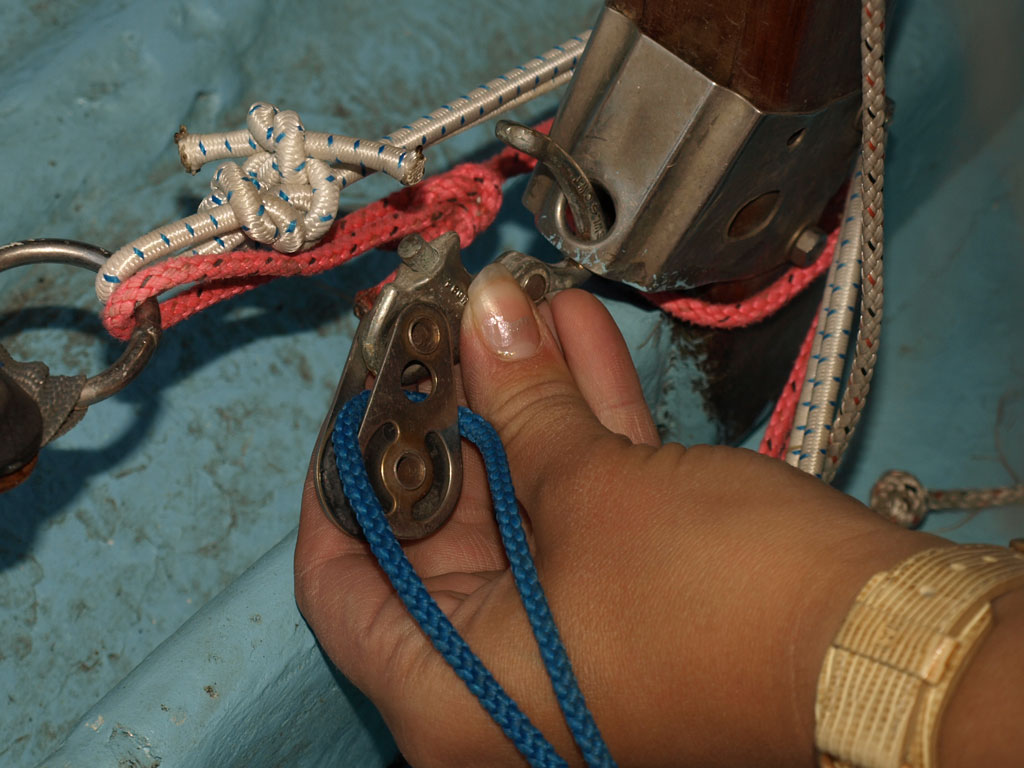

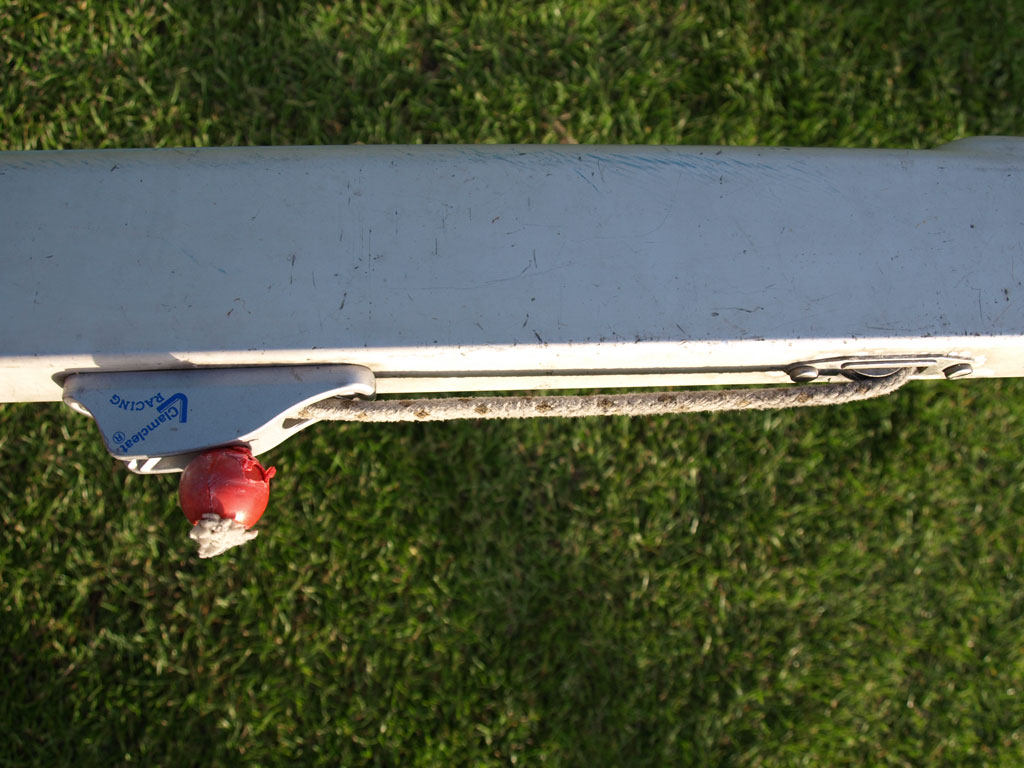

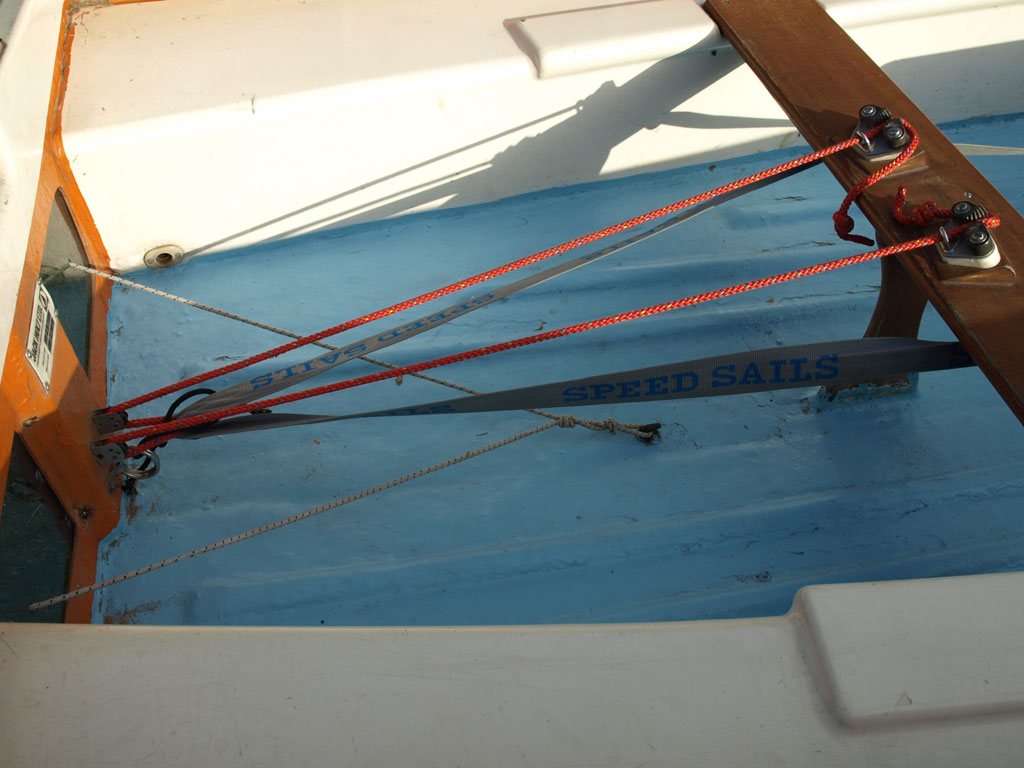

Photo 7, the mast step and toestraps

Photo 7, the mast step and toestraps

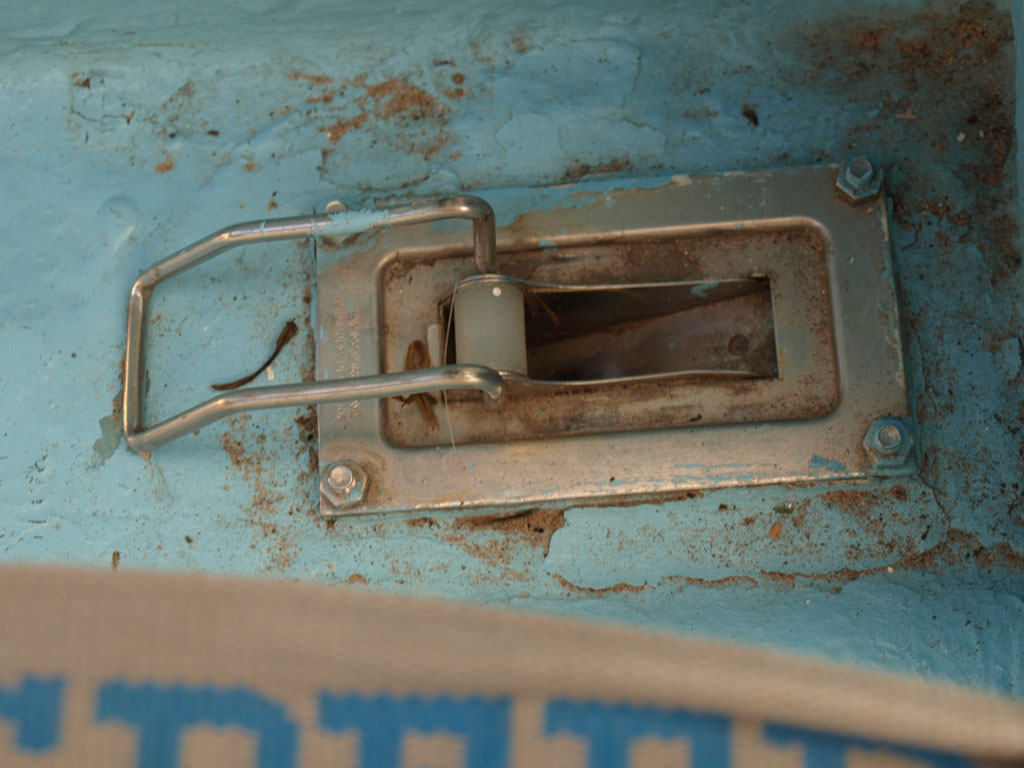

Photo 8, one of two of the self-bailers,

Photo 8, one of two of the self-bailers,

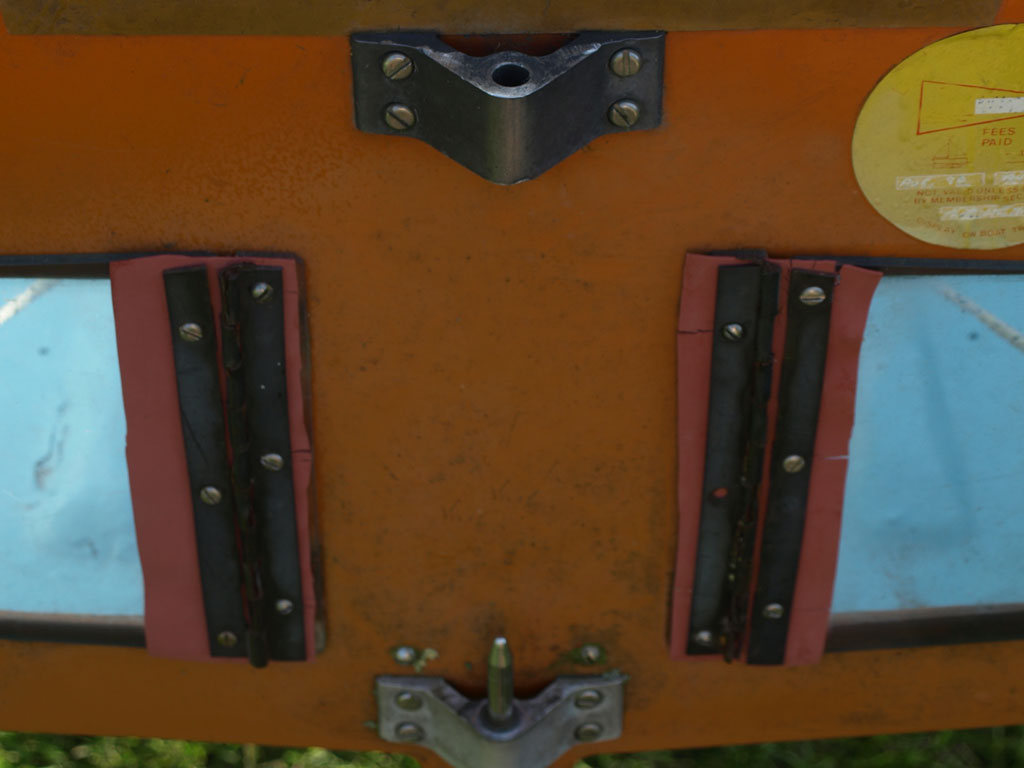

Photo 9, The transom and traveller

Photo 9, The transom and traveller

Photo 10, The rudder pintles

Photo 10, The rudder pintles

Before we start, we'd just like to point out that in most Enterprises, you'll have two figure eight cleats for the halyards. We did originally in this one, until about a week before we did this, when someone (for once not us) decided to hoist a halyard with a little too much effort, and snapped off the top of one of the cleats.

What You Need

Mast, Spreads, Shroud, and Forestay (unless you've bought from new, these should all be together)
Main Sail, Jib Sail
Battens
Main Sheet + Blocks, Jib Sheet
Kicking strap/boom vang assembly + lines
Outhaul
Downhaul
Boom
Tiller + Tiller Extension, Rudder
Painter
Hull (bit obvious this one) + Centreboard
Bungs (depending upon boat type).

Photo 11, all the ropes laid out on the rudder blade

Photo 11, all the ropes laid out on the rudder blade

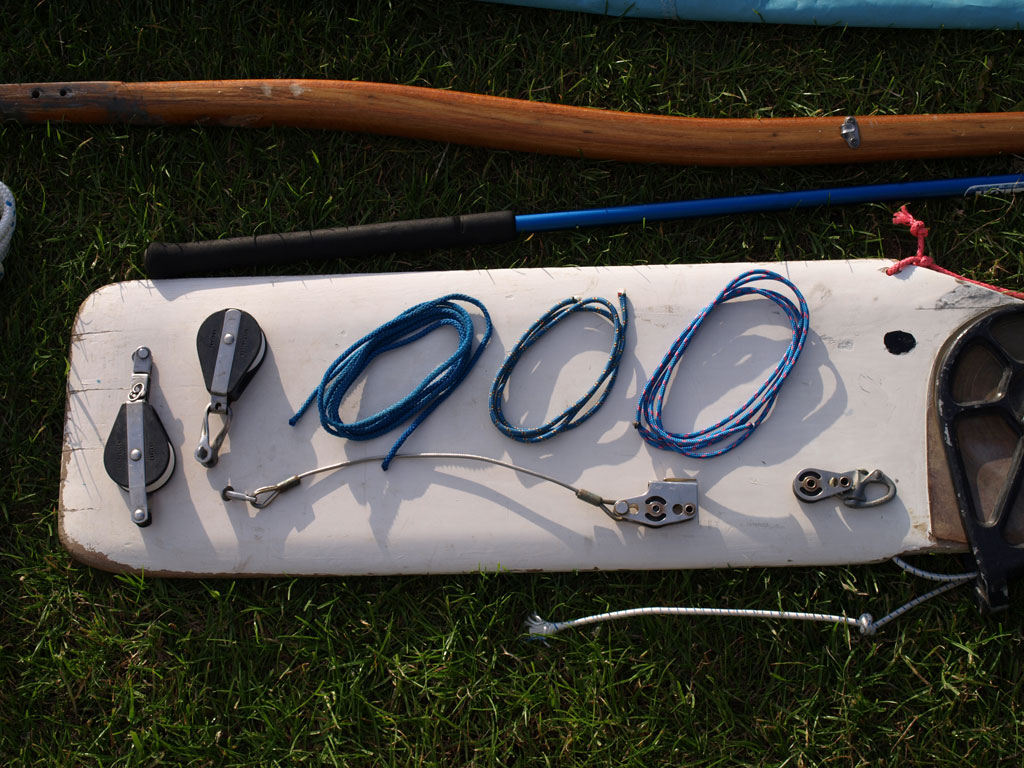

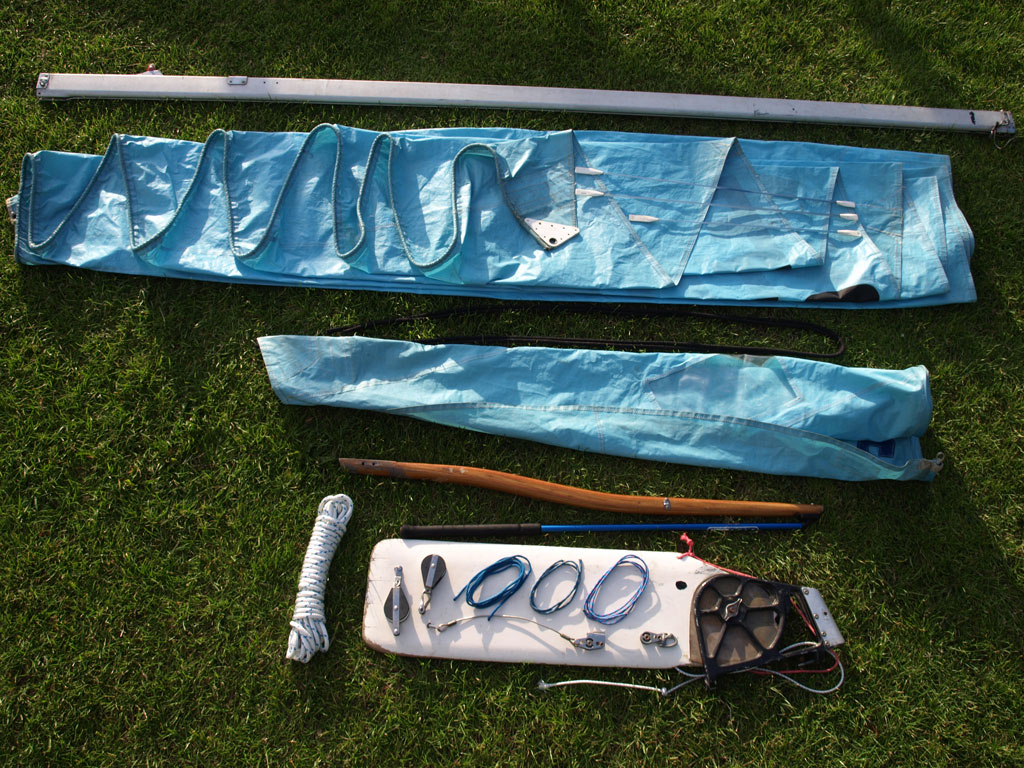

Photo 12, the parts we need to rig the Enterprise

Photo 12, the parts we need to rig the Enterprise

Please be aware that your boat may not come as class legal, unless you buy it new or off a serious racer. There is no one "legal" layout for an Enterprise; you need to get your boat "measured" and a measurement certificate drawn up if you plan to seriously race. Not all clubs require this; if you're sailing at a smaller club, then find out first whether you need to spend this money. The class association is a good place to start looking into this.

Lets Get Started!

Make sure you start with a clean boat, go all over it, and make sure nothing is broken, or if it is broken, make sure its' not important enough to stop you rigging the boat, or sailing it afterwards. Ensure you have all of the parts listed above if you need them; it's always a good idea to have a spares box with odds and ends of rope and fittings in. If you're like us, this may be several boxes, with more than a few odds and ends...

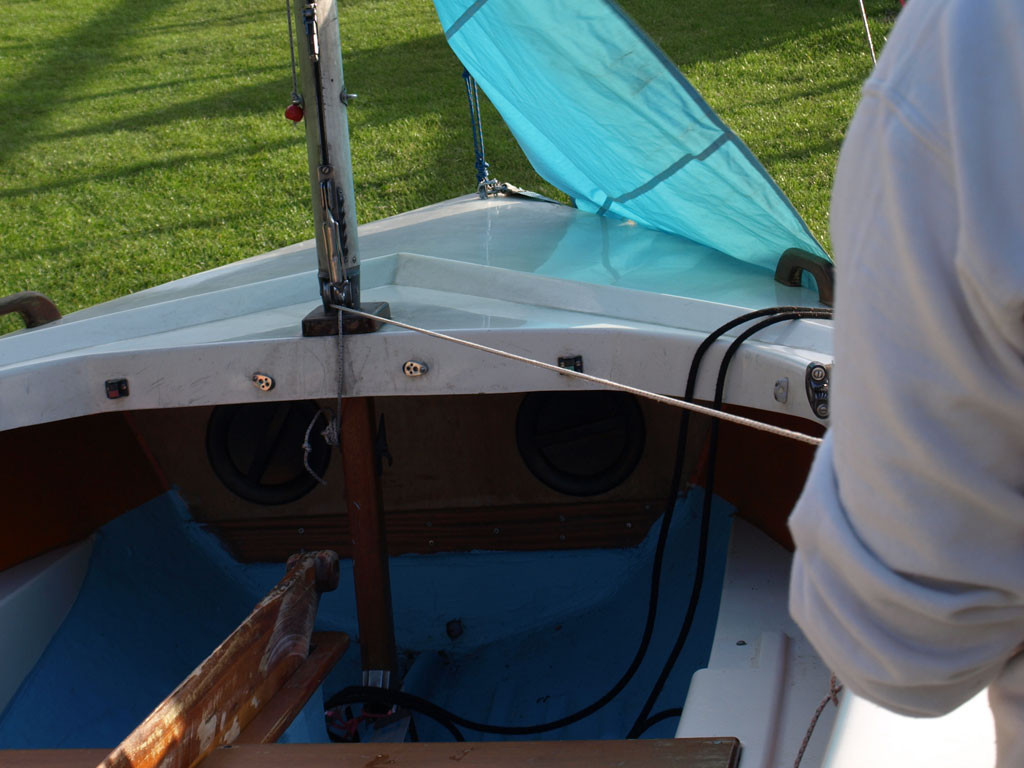

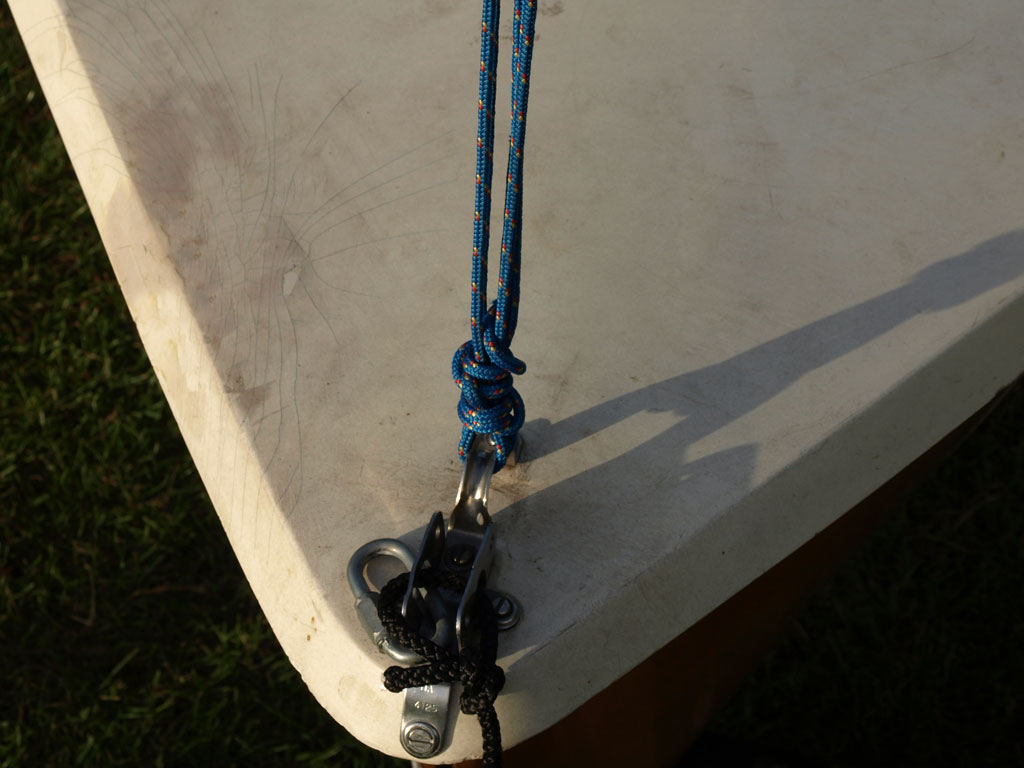

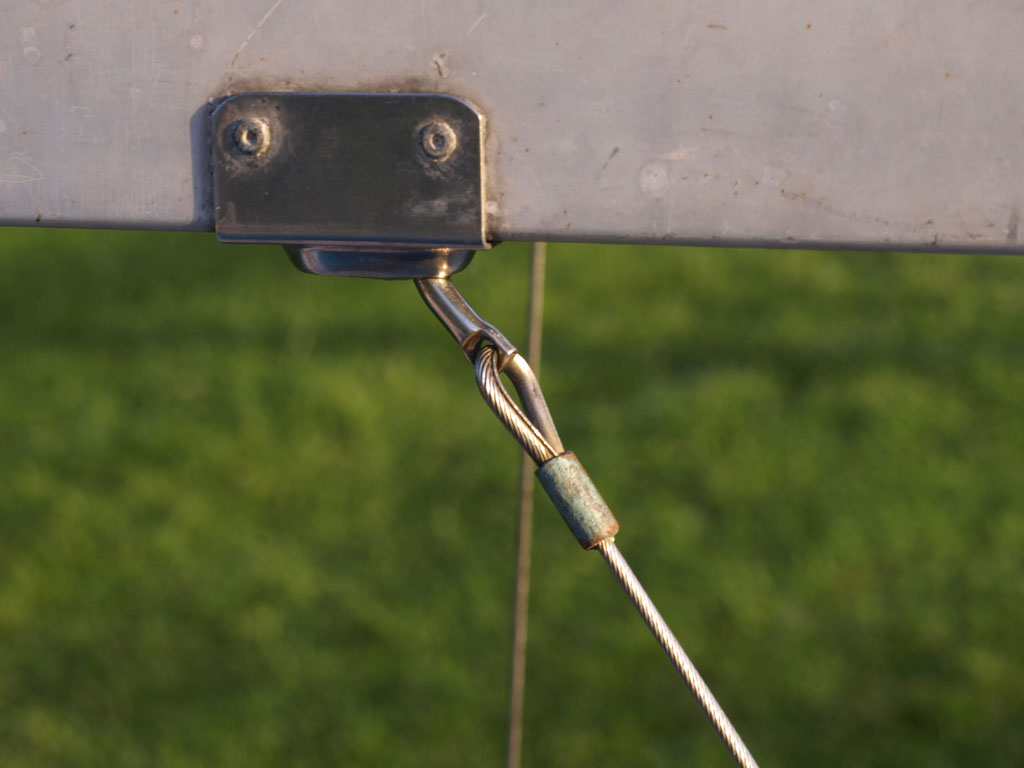

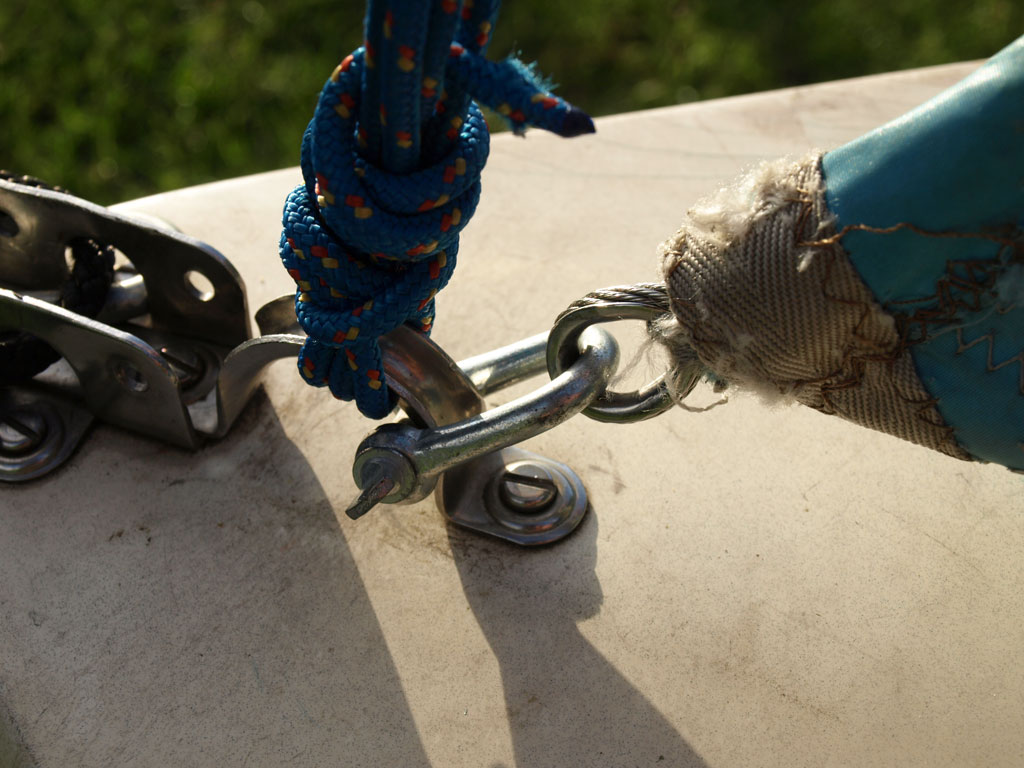

Photo 13, The forestay

Photo 13, The forestay

There is a divided opinion on whether to rig boats on land or on the water - we'd suggest if it's not terribly windy, to rig the boat on land, hoist the jib, pointed head to wind, in anything other than a gentle breeze getting the mainsail ready, but hoisting it on the water. It's usual to start rigging the Enterprise front to back, starting with the jib.

As you can see on this example, the mast is already raised, with a length of rope securing the forestay to the bowplate on the front of the deck in Photo 13 (although a bottlescrew could be used instead), and the shrouds fitted to the shroudplates with "vernier" stay adjusters (Photo 5). These adjusters allow you to alter the angle of the mast forward and backward, known as the mast rake. The mast rake directly affects the centre of effort, and whether the boat will show (#) weather or (#) lee helm. The mast is stepped on the deck on this boat, with the mast step a separate piece of wood under the deck to the hull (Photo 6), which the kicking strap and toe straps are secured to (Photo 7).

Photo 14, clipping on the jib

Photo 14, clipping on the jib

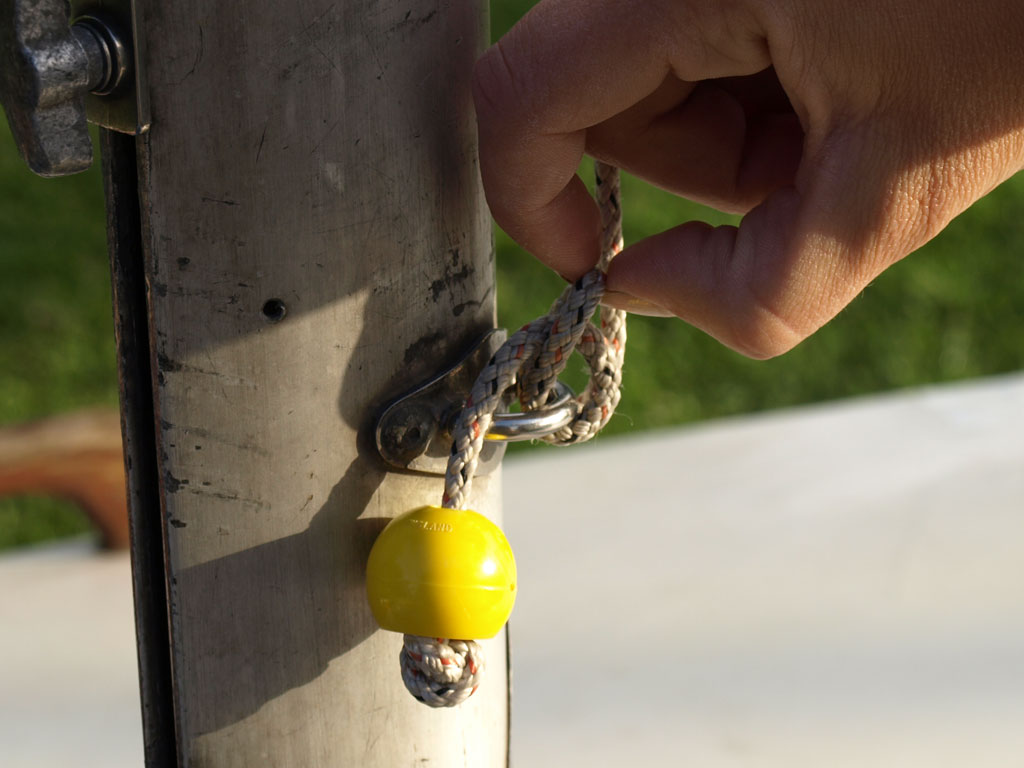

Photo 15, Undoing a rope stopper

Photo 15, Undoing a rope stopper

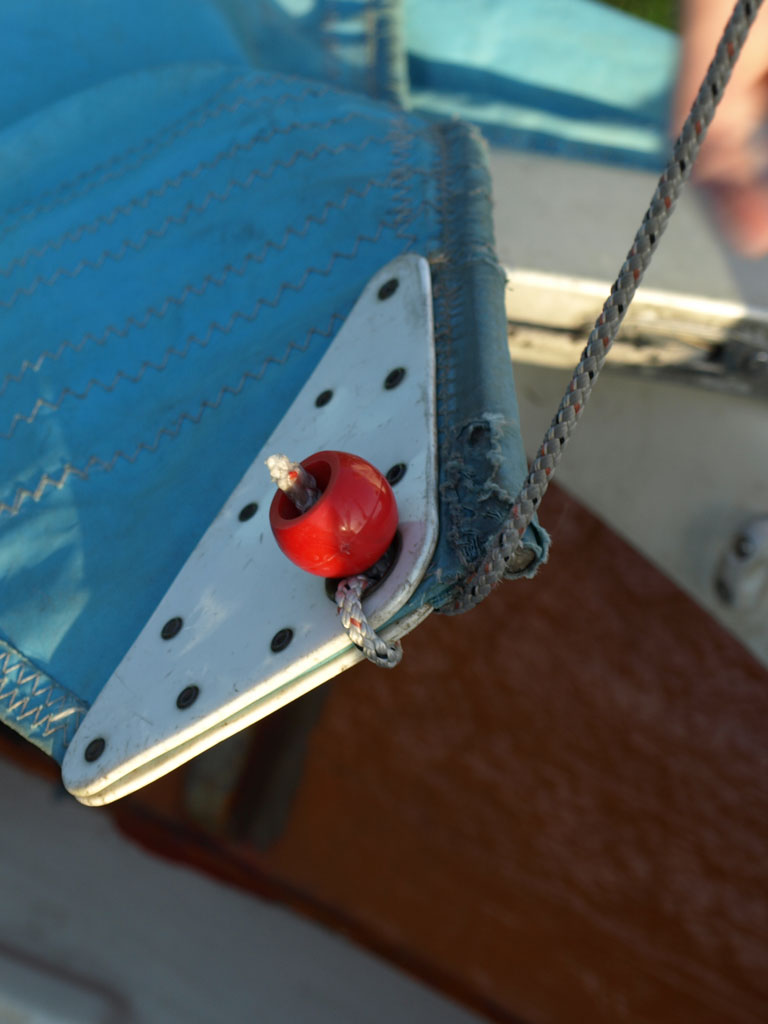

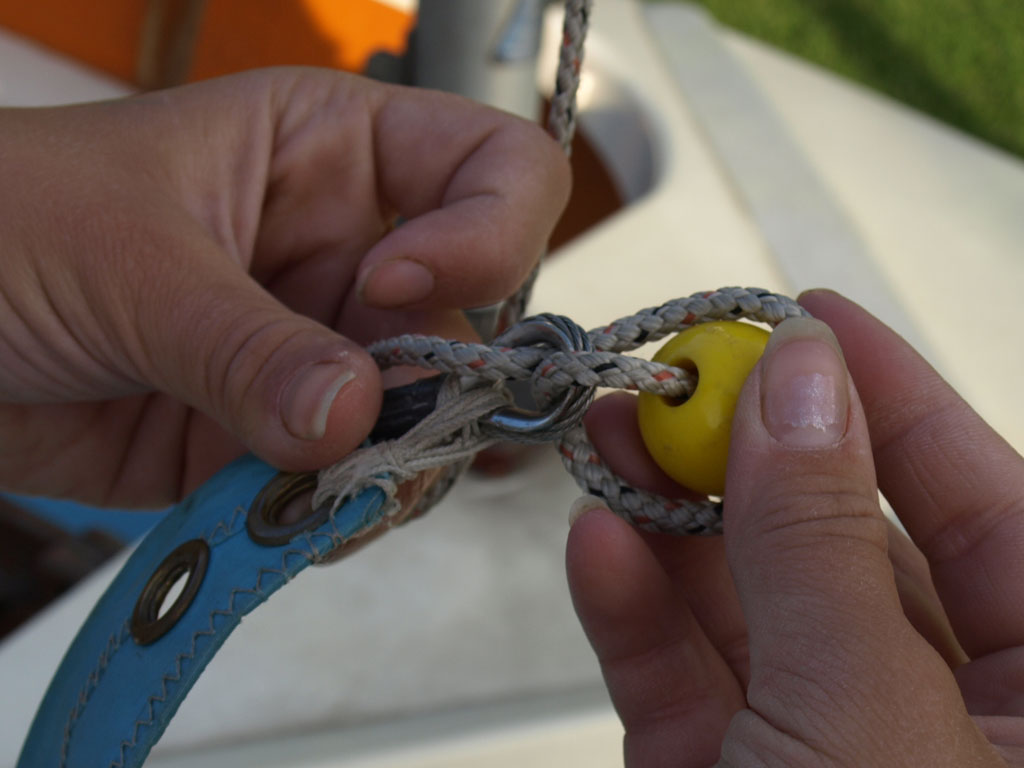

Open up and check your jib sail, and unroll it. Attach the tack (front corner) of the jib sail to the metal loop on the front of the deck (Photo 14), using a shackle - which type you use is not important, but it's best to use the smallest one possible (less weight). Attach the end of the halyard to the top of the jib sail using whichever fitting is necessary - on this example, it's a rope stopper. Make sure before you attach this to the sail there are no twists in the luff of the sail. Attach the stopper as shown, by making a bight in the rope, passing it through, then pass the stopper through the loop, and tighten (Photos 16-19).

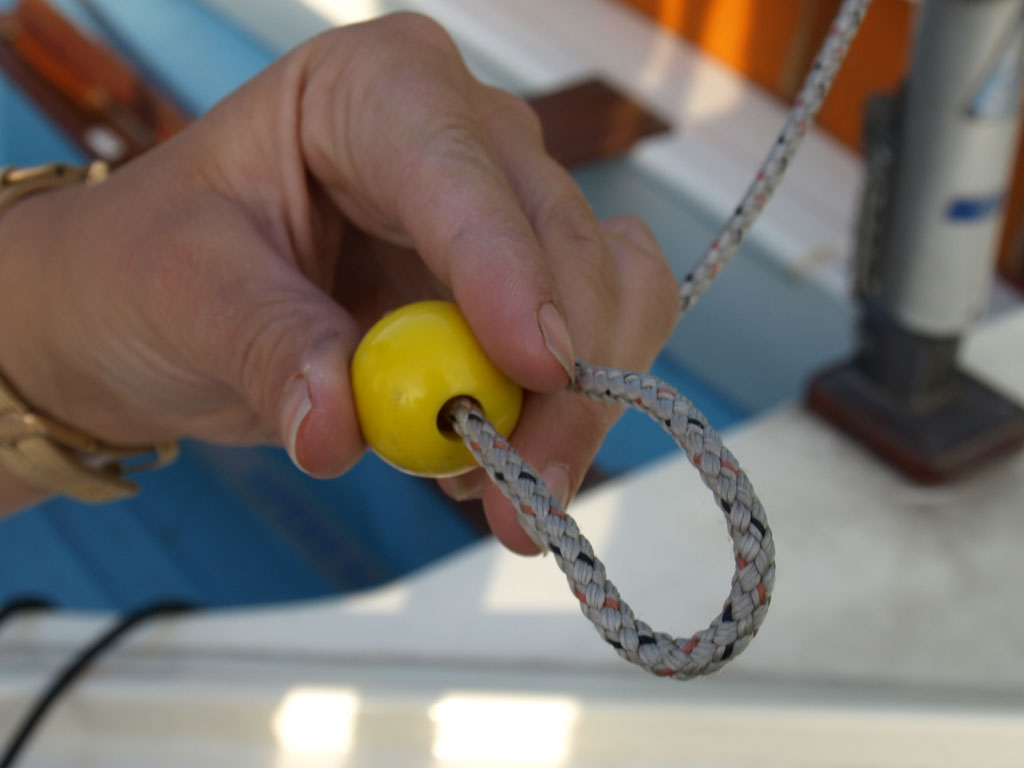

Photo 16, Fixing a rope stopper

Photo 16, Fixing a rope stopper

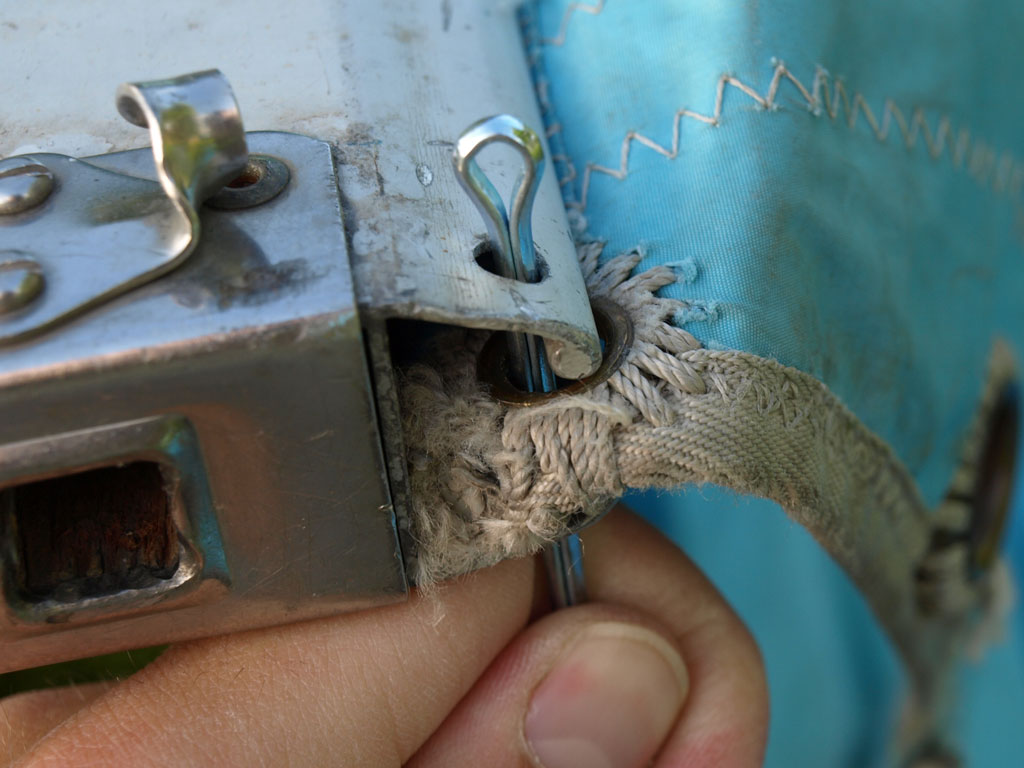

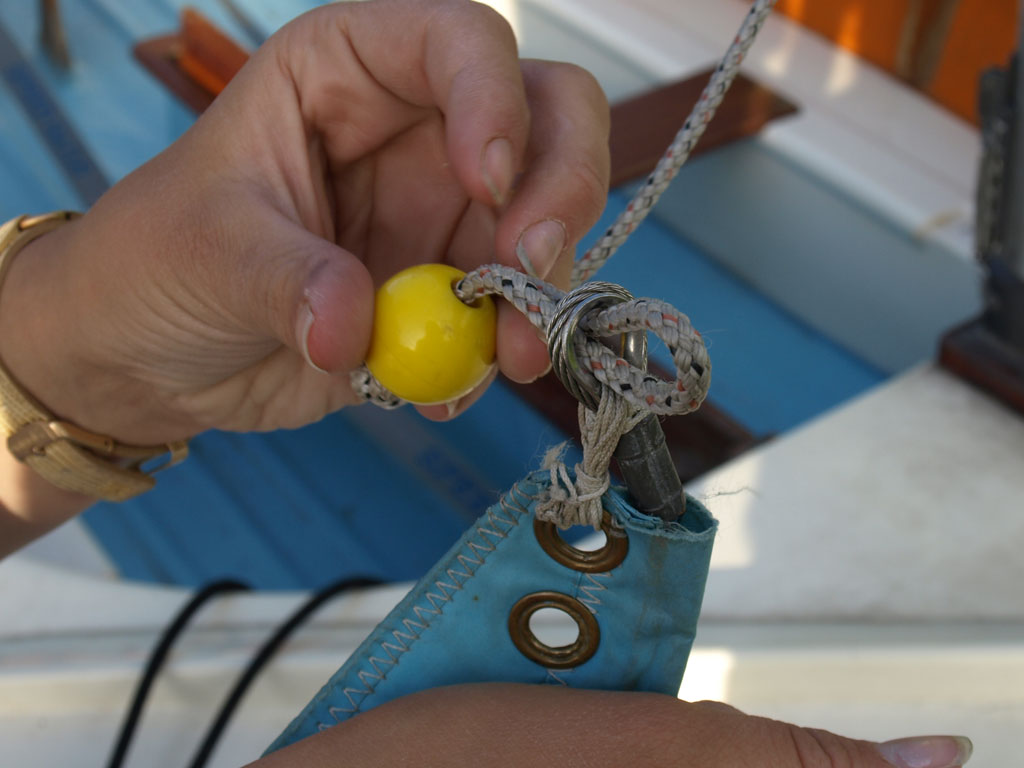

Photo 17, Fixing a rope stopper to a sail

Photo 17, Fixing a rope stopper to a sail

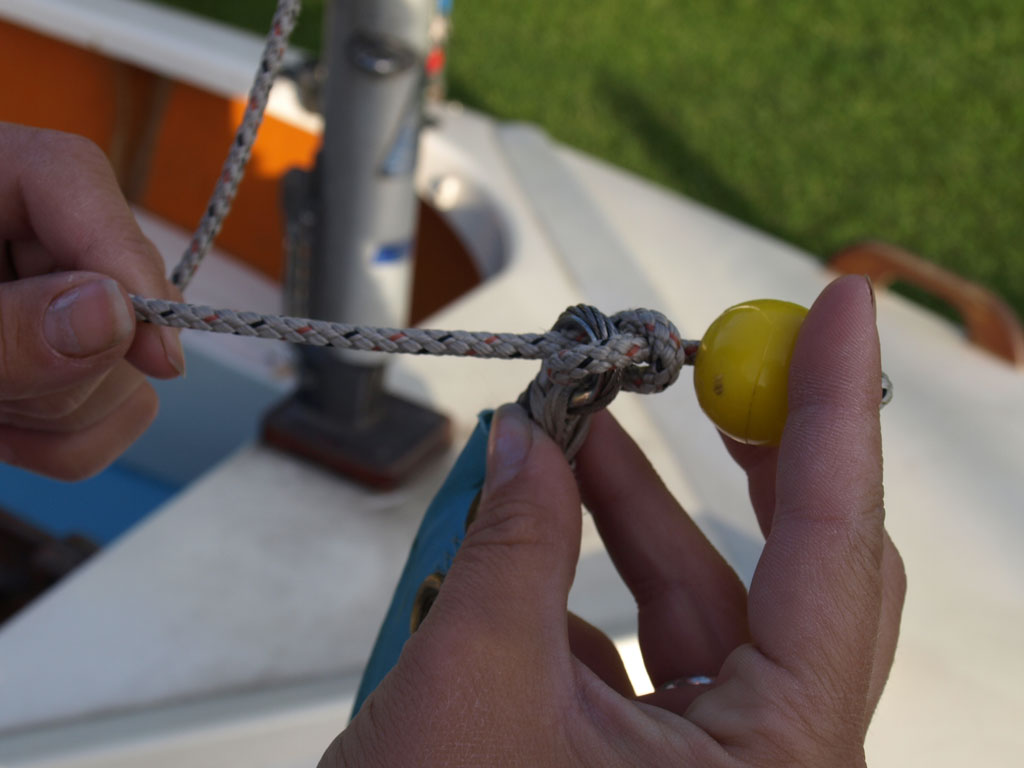

Photo 18, Fixing a rope stopper to a sail

Photo 18, Fixing a rope stopper to a sail

Photo 19, Fixing a rope stopper to a sail

Photo 19, Fixing a rope stopper to a sail

To raise the jib, pull on the other end of the halyard (Photo 20). It should go up with very little resistance (other than any wind). Do not wrap the rope around your hand (Photo 21) - if you can't pull it up, bundle some slack rope in your hand for more grip, or get some plastic coated gloves.

Photo 20, Hoisting the jib

Photo 20, Hoisting the jib

Photo 21, Never wrap the halyard rope around your hand

Photo 21, Never wrap the halyard rope around your hand

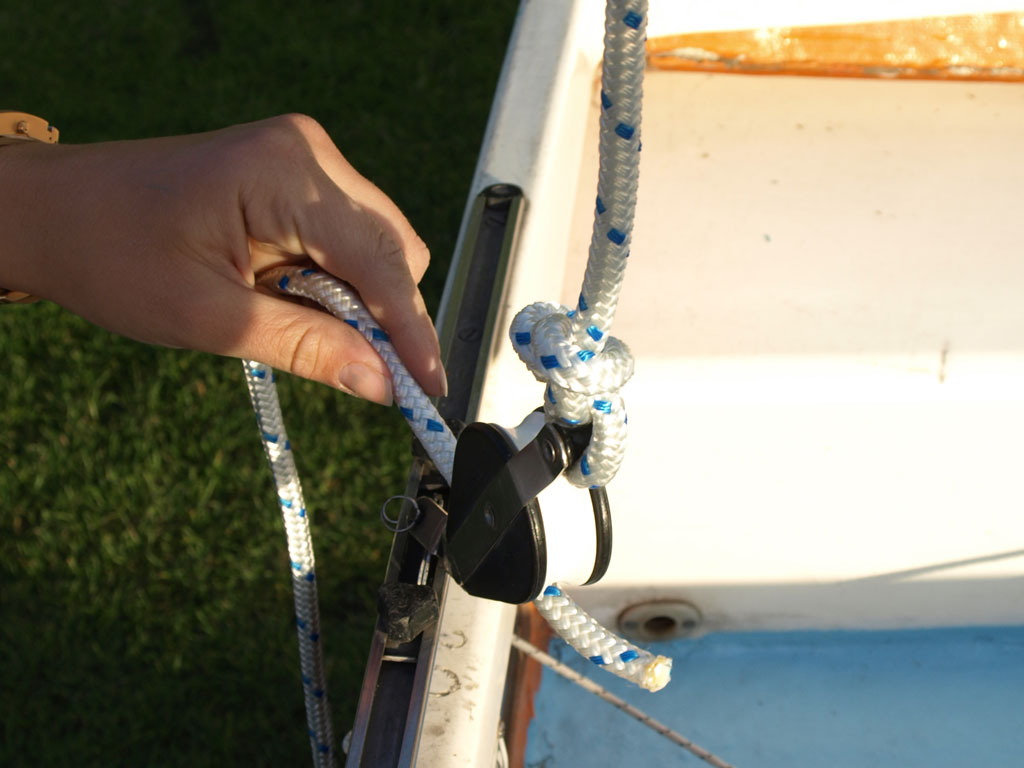

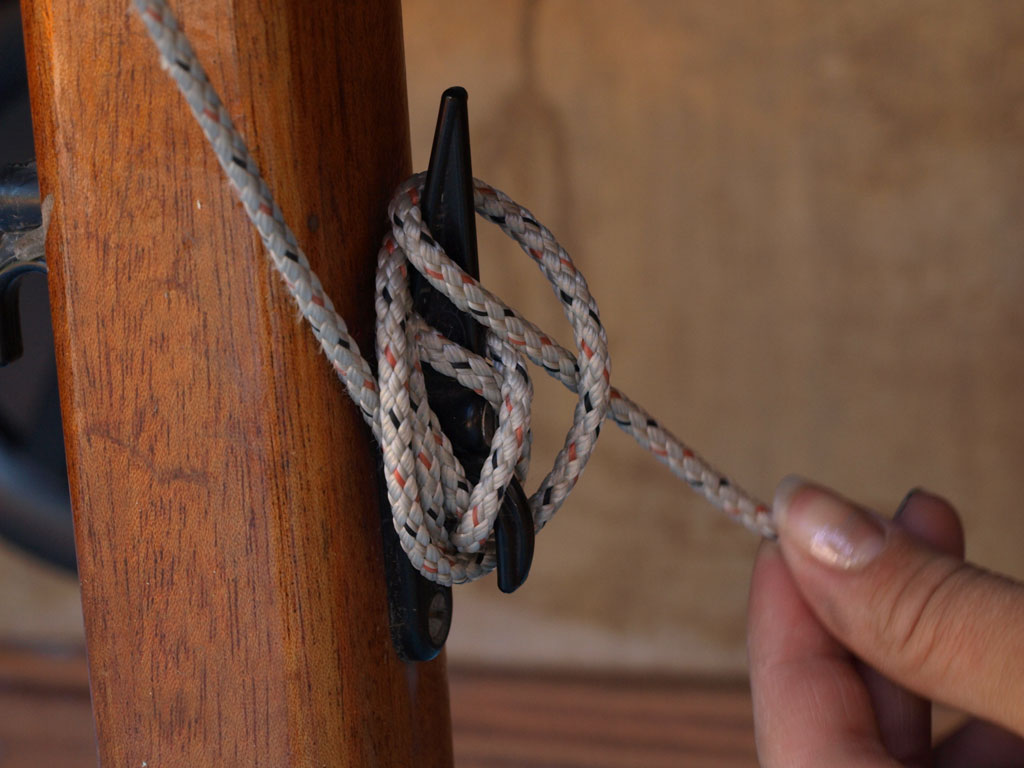

When the jib is fully raised, cleat it off around whichever fitting appropriate - in this case it's a figure 8 cleat. Take the rope around the outside of the cleat once (Photo 22), then figure 8 over the cleat once, then make a loop (Photo 23), with the working end becoming trapped underneath as you half-figure eight the rope around the cleat, as shown (Photo 24). This traps off the rope. Do not endlessly figure 8 the rope around the cleat - in an emergency this makes it difficult to uncleat quickly. Neatly bundle any remaining rope, and stow it over the top of the cleat, in a halyard back, or out of the way (Photo 25).

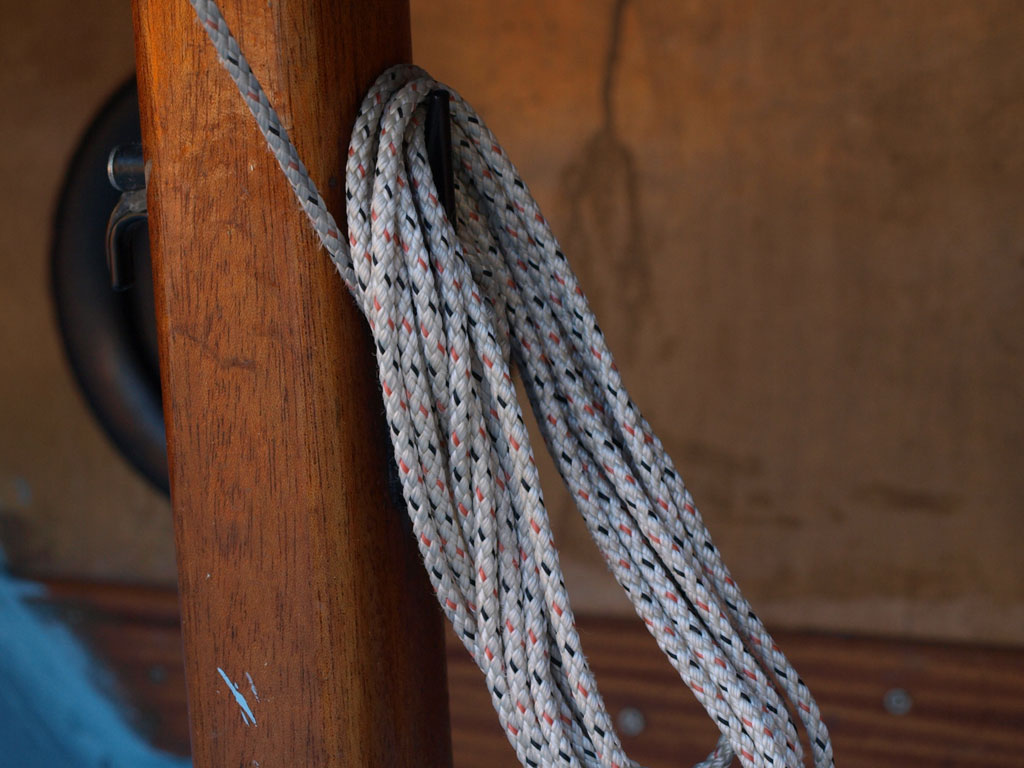

Photo 22, Figure 8 cleat the halyard

Photo 22, Figure 8 cleat the halyard

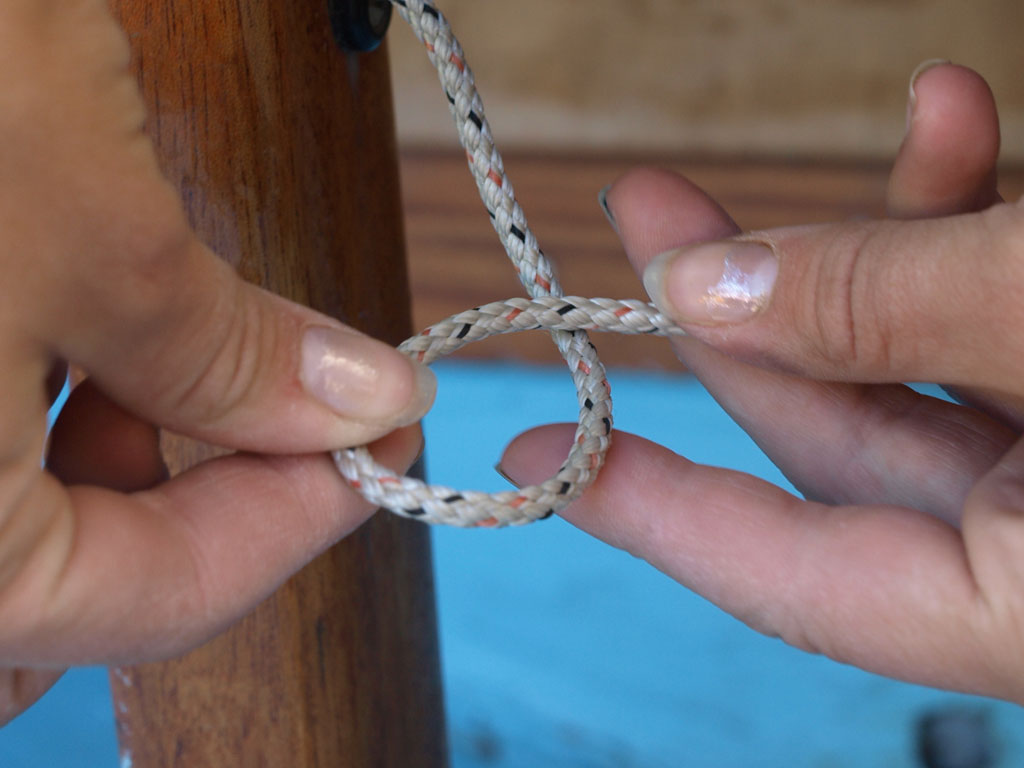

Photo 23, Form a loop

Photo 23, Form a loop

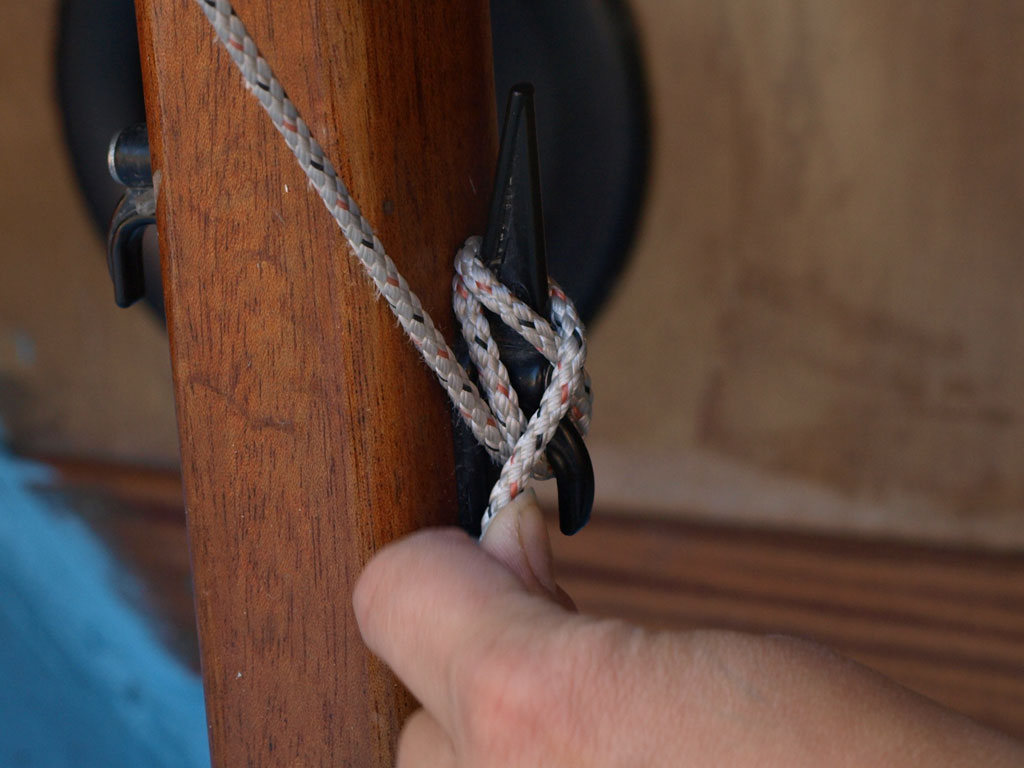

Photo 24, Lock off the halyard rope around the cleat

Photo 24, Lock off the halyard rope around the cleat

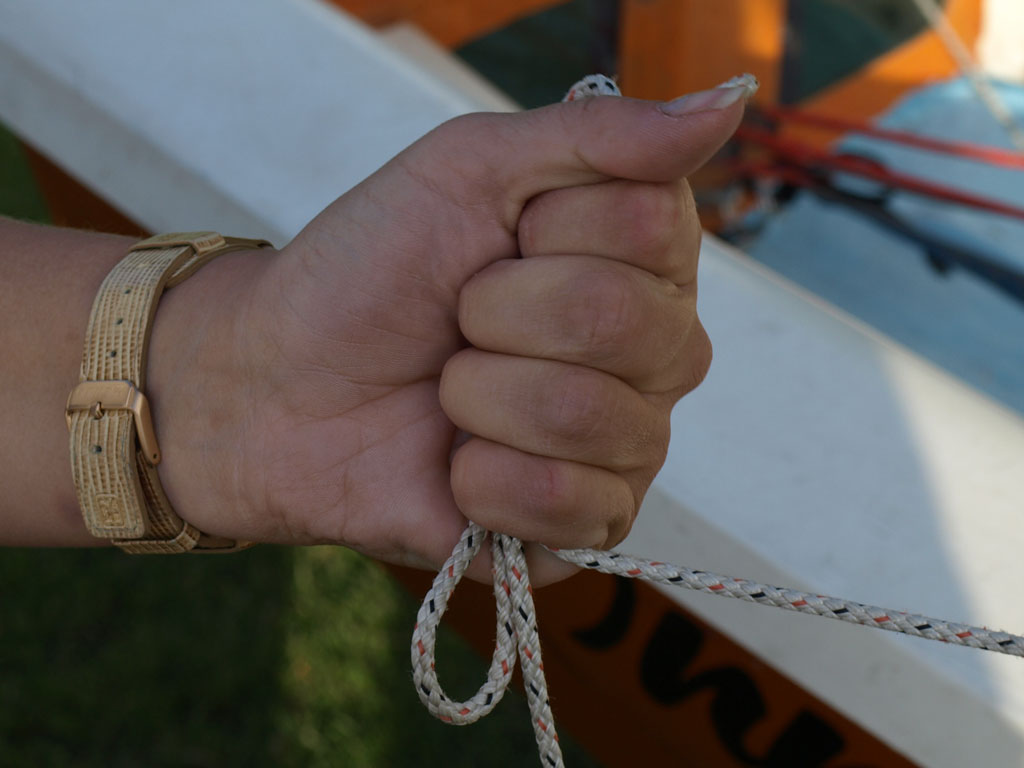

Photo 25, Tidy up the remaining rope

Photo 25, Tidy up the remaining rope

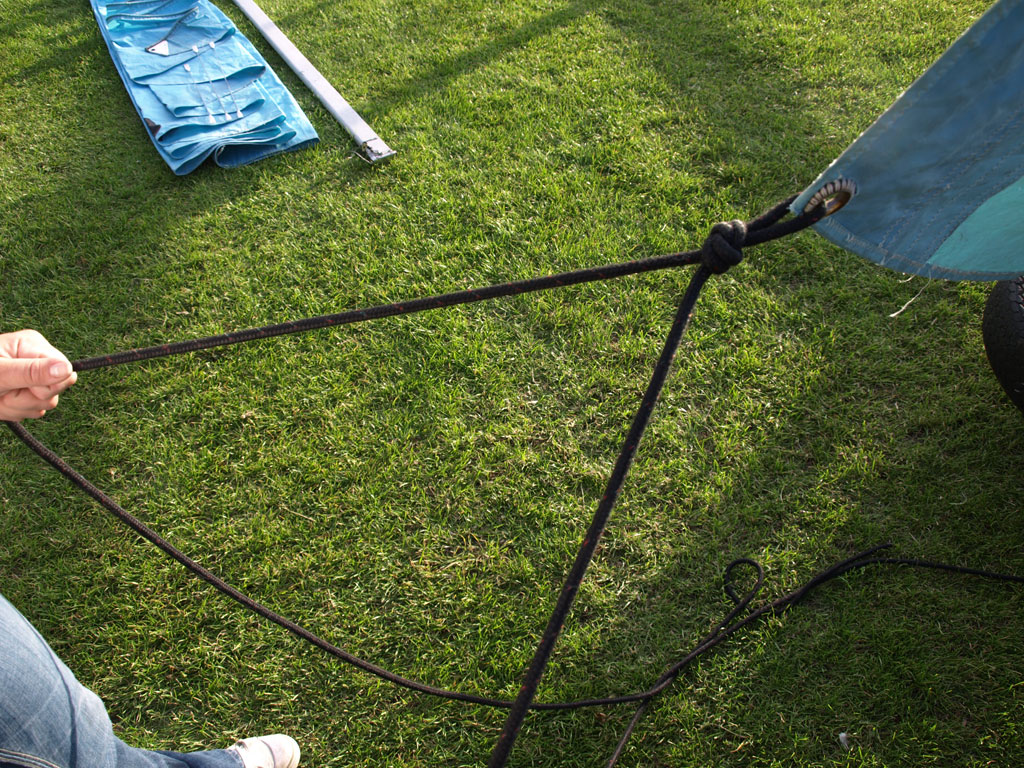

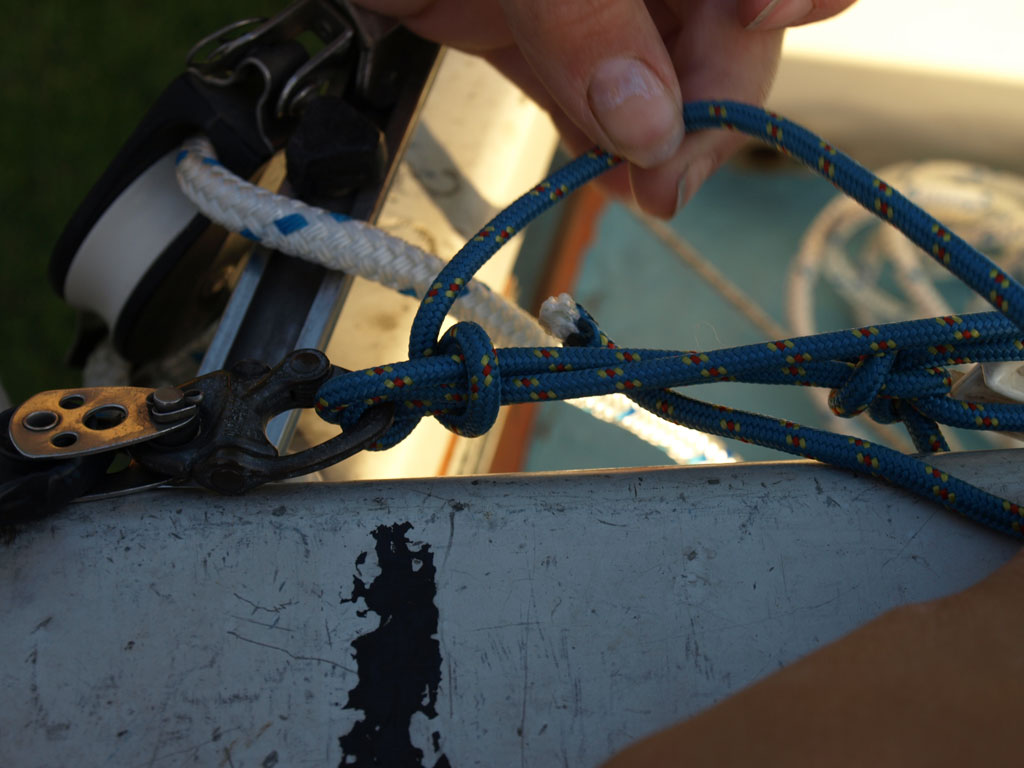

Next, if they are not already attached to the sail, tie on the jib sheets. FInd the middle piece of the rope, and tie a knot of some sort in it, either a double overhand knot as shown in the picture, or a stopper knot either side of the hole (which is less likely to cause the jib sheets to twist around each other). Ensure the jib sheets are not twisted then pass them through fairleed for the jib sheet jammers, inside the shrouds, and place a stopper knot or figure eight knot about 12 inches from the end of the rope (Photo 26). Make sure the jib sheets are not jammed off on land, as shown. If a gust comes, there is no freedom in the rope, and the boat could be taken off the trolley (Photo 27).

Photo 26, make sure the jib sheets aren't twisted

Photo 26, make sure the jib sheets aren't twisted

Photo 27, pass the jib sheets through the fairleads

Photo 27, pass the jib sheets through the fairleads

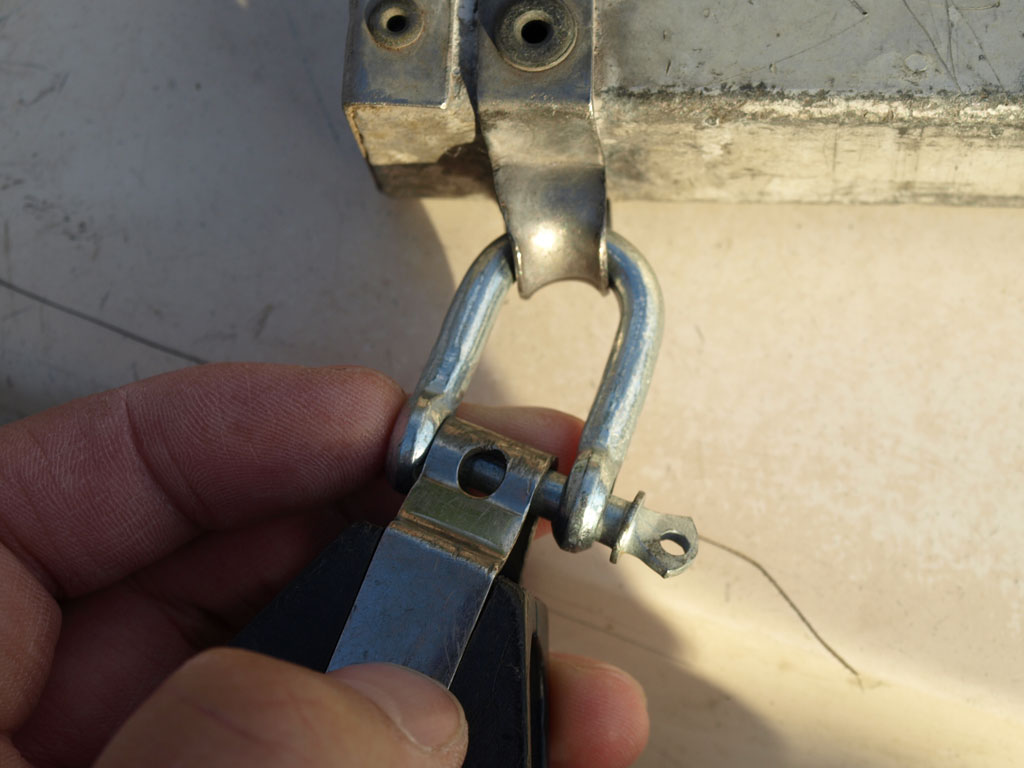

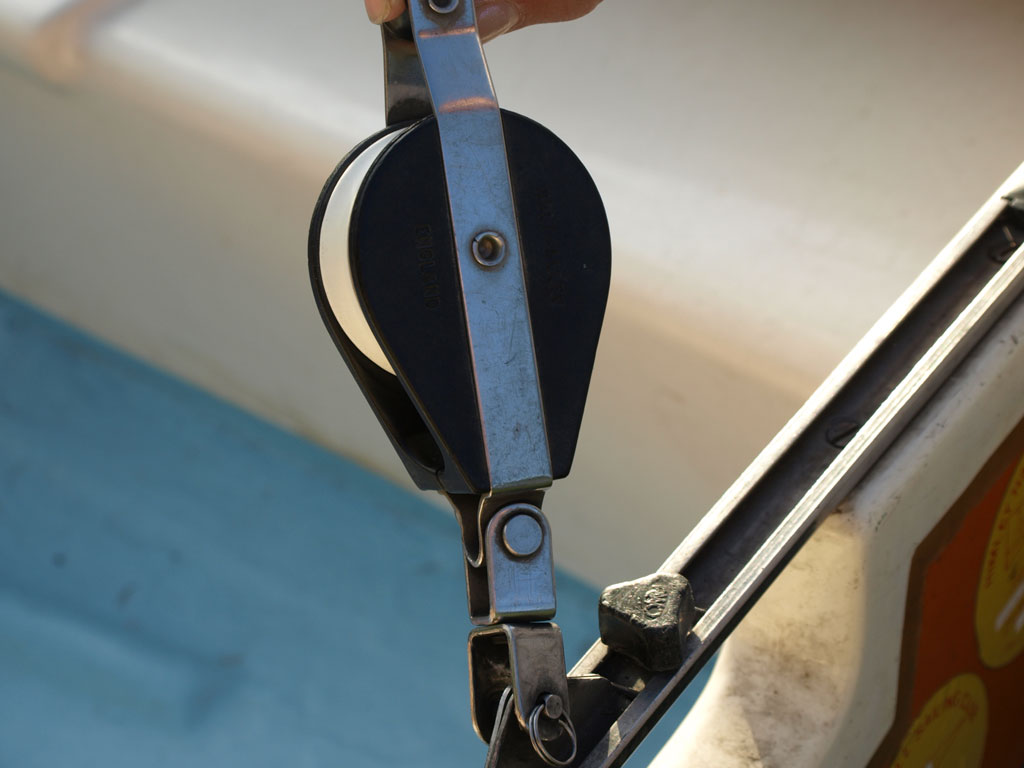

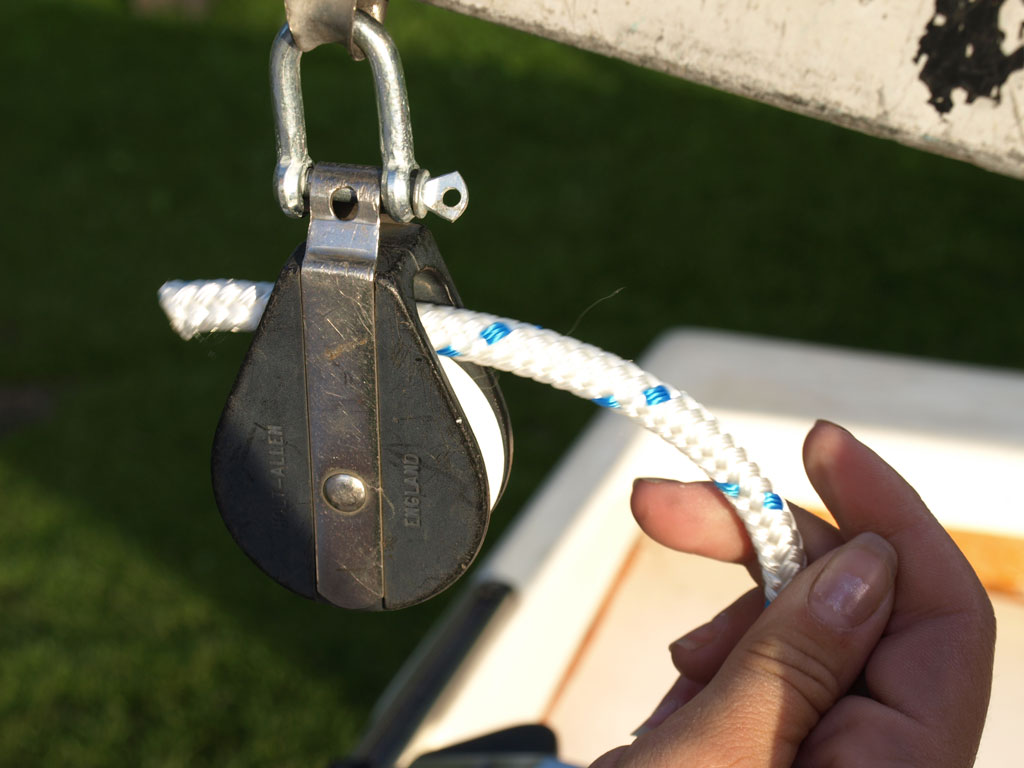

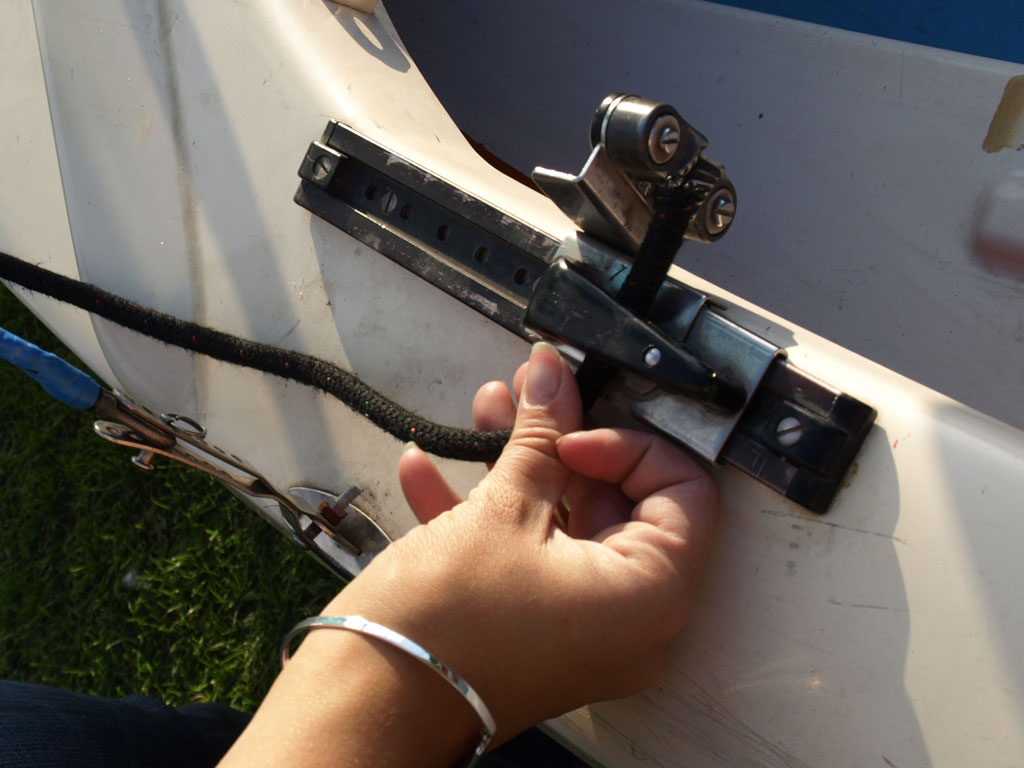

If it's not already attached, then fix the main swivel block to the traveller on the transom of the boat. It should also have a becket on the top (Photo 30). It may not always look like the one in the picture - there are many variations of blocks made by many different manufacturers. The basic criteria for this one is to be big enough to take the mainsheet, with a swivel fitting at the base (so it will rotate around) and a becket at the top (which looks like a small fixed roller and is there to tie the end of the rope around). Next, fit the other block (which is just a plain pulley block with no becket or swivel base) to the underneath of the end of the boom (Photo 31).

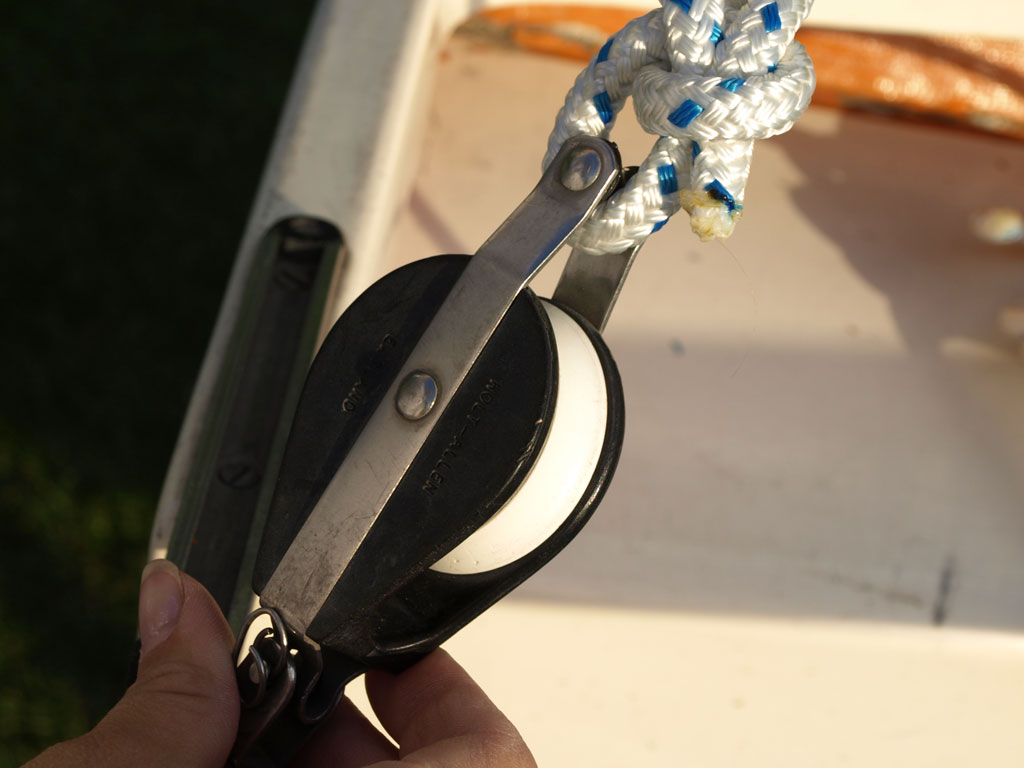

Photo 30, Attach the lower mainblock

Photo 30, Attach the lower mainblock

Photo 31, Attach the top mainblock

Photo 31, Attach the top mainblock

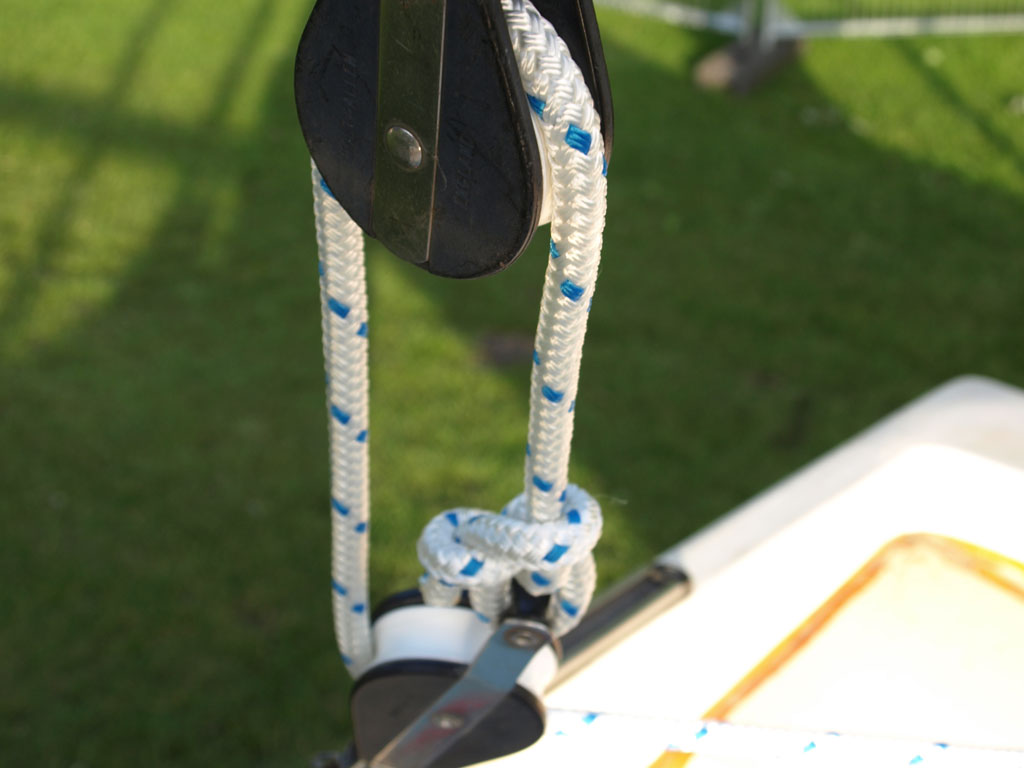

Now it's time to add the mainsheet. Tie one end around the becket on the bottom mainblock, using a bowline (Photo 32). Keep the knot as small as possible - if you make it too big, it will interfere with pulling the sail in tightly. Take the working (free) end, and pass it through the block on the underside of the boom, going through from the front to back (Photo 33), and then pass it down and through the lower block, from back to front (Photo 34). The working end then goes into the boat (Photo 35).

Photo 32, Bowline on the becket of the lower block

Photo 32, Bowline on the becket of the lower block

Photo 33, mainsheet through the upper block

Photo 33, mainsheet through the upper block

Photo 34, mainsheet back through the lower block

Photo 34, mainsheet back through the lower block

Photo 35, mainsheet finished

Photo 35, mainsheet finished

Tie a stopper knot in the free end of the rope, to stop the rope end from passing through the pulley blocks - not something you want to have to fix on the water! To determine where a stopper knot should be put to limit the amount the mainsail can pull the boom out, wait until the sail is rigged, and pull the boom out sideways as far as it will go until just before it touches the shroud. Place a stopper knot in the rope here, and it will stop any damage to the shrouds during fast gybes.

The Main Sail

Unfold and spread the main sail out on a clear patch of ground. Check it over for any new holes or rips you may not have noticed before - this should be done every time you use it, because if you use an already damaged sail, you risk damaging it even more. Next, take the battens (stiff thin pieces of wood or plastic), figure out which fits in which pocket (the top one is usually smaller unless it's a full width or snap batten), and insert them as shown (Photo 37).

Photo 36, The business end of the outhaul

Photo 36, The business end of the outhaul

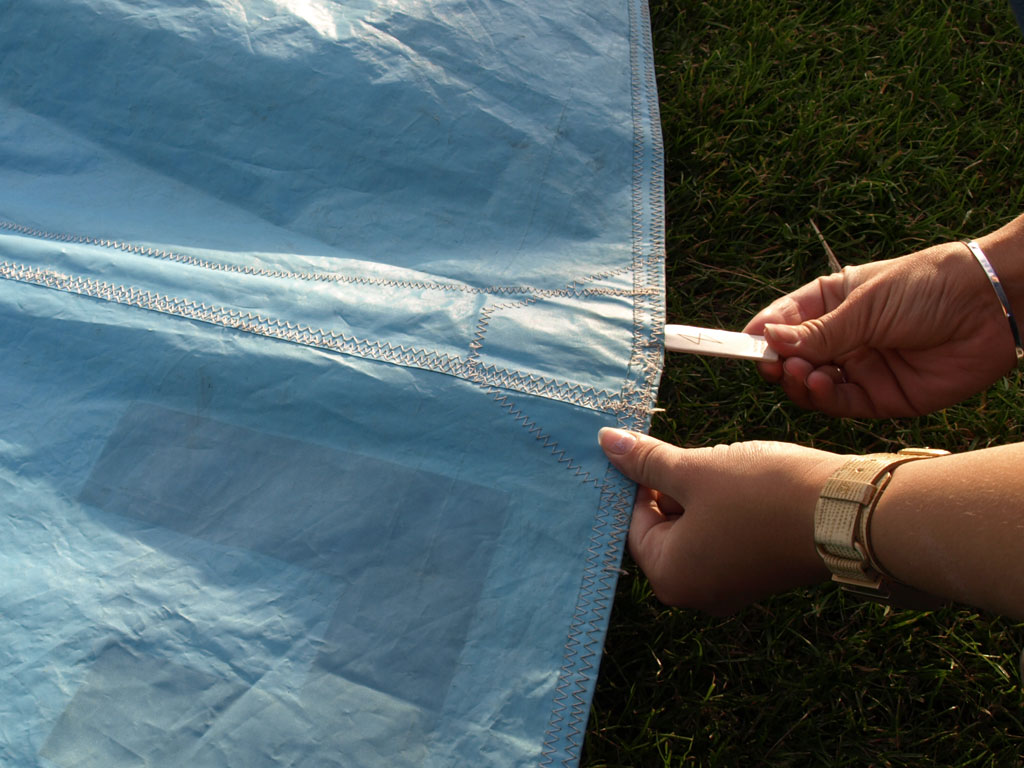

Photo 37, Insert the battens into the sail

Photo 37, Insert the battens into the sail

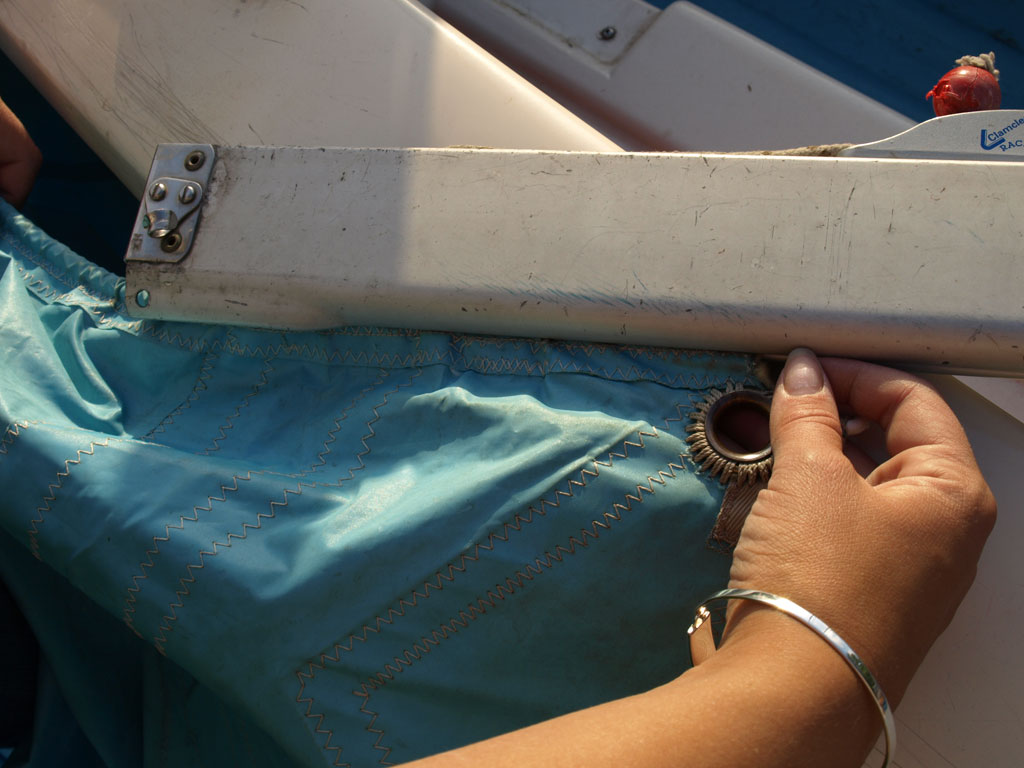

Next. take the bottom back corner of the sail (the clew), and feed it into the front end of the boom (Photo 38), which should have a slot running along it's upper side. There may or may not be a plastic car (a little plastic object) on the bottom corner to feed into this track. On our boat we did not use the plastic car, because the sail was originally for a different boat. Pull the sail all the way through the boom track, until the front end reaches the front end of the boom, and secure it appropriately (in this case, with a split pin through holes in the boom and the sail as shown), as shown in Photo 39.

Photo 38, thread the sail into the boom

Photo 38, thread the sail into the boom

Photo 39, secure the front bottom corner of the sail

Photo 39, secure the front bottom corner of the sail

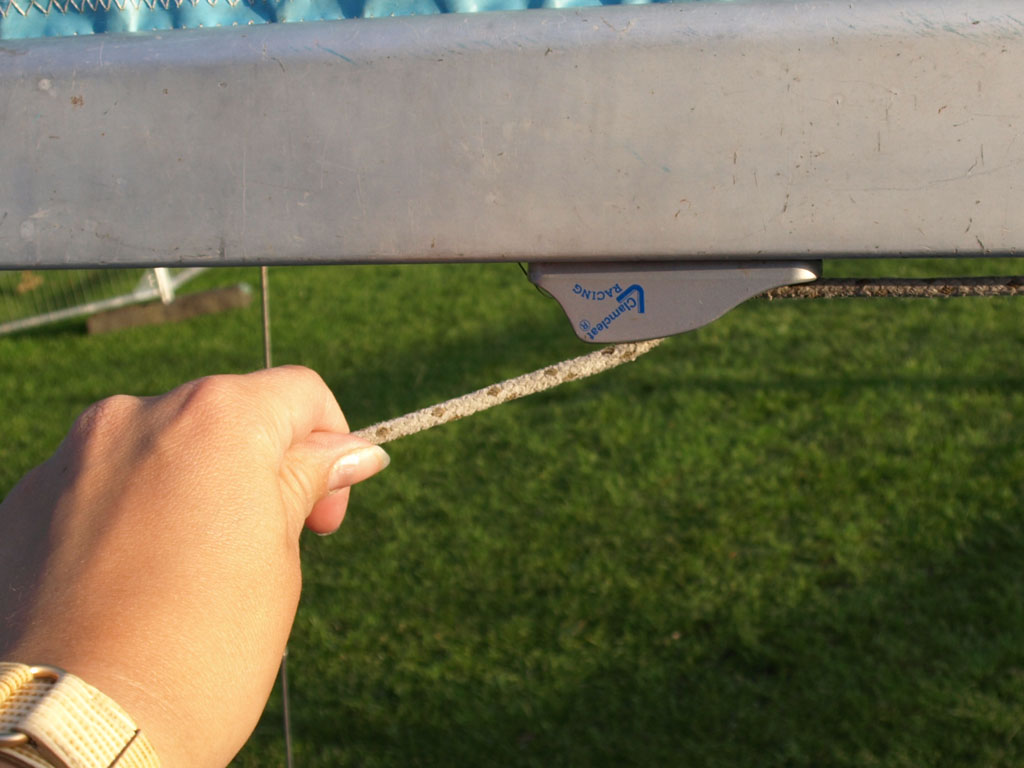

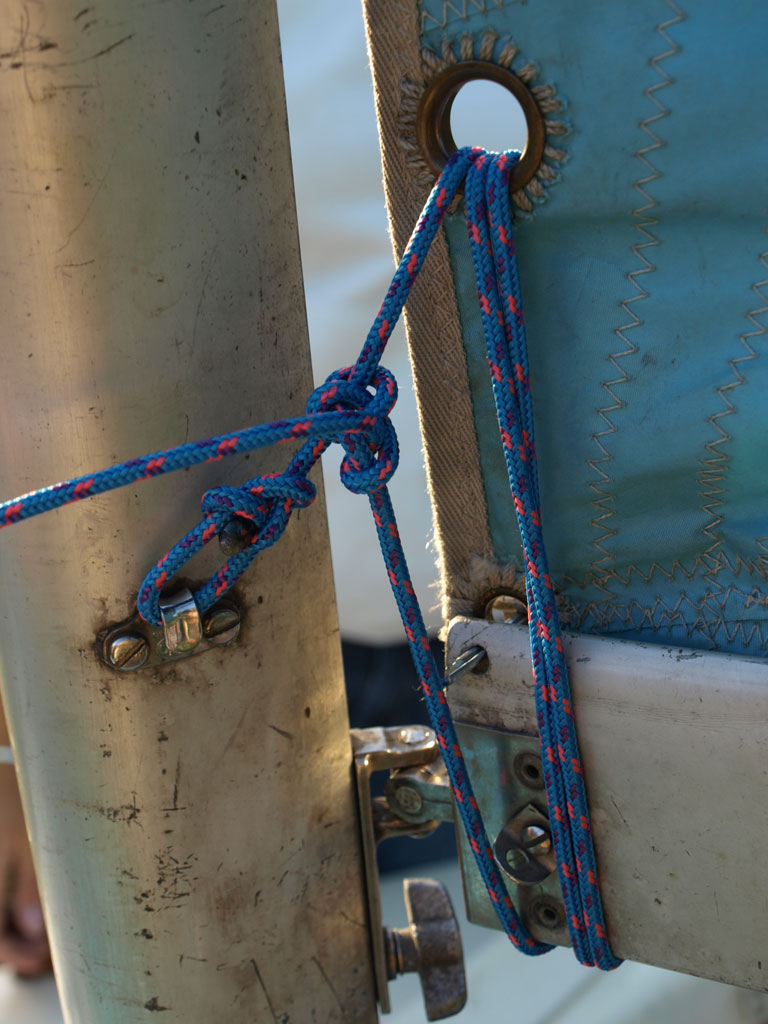

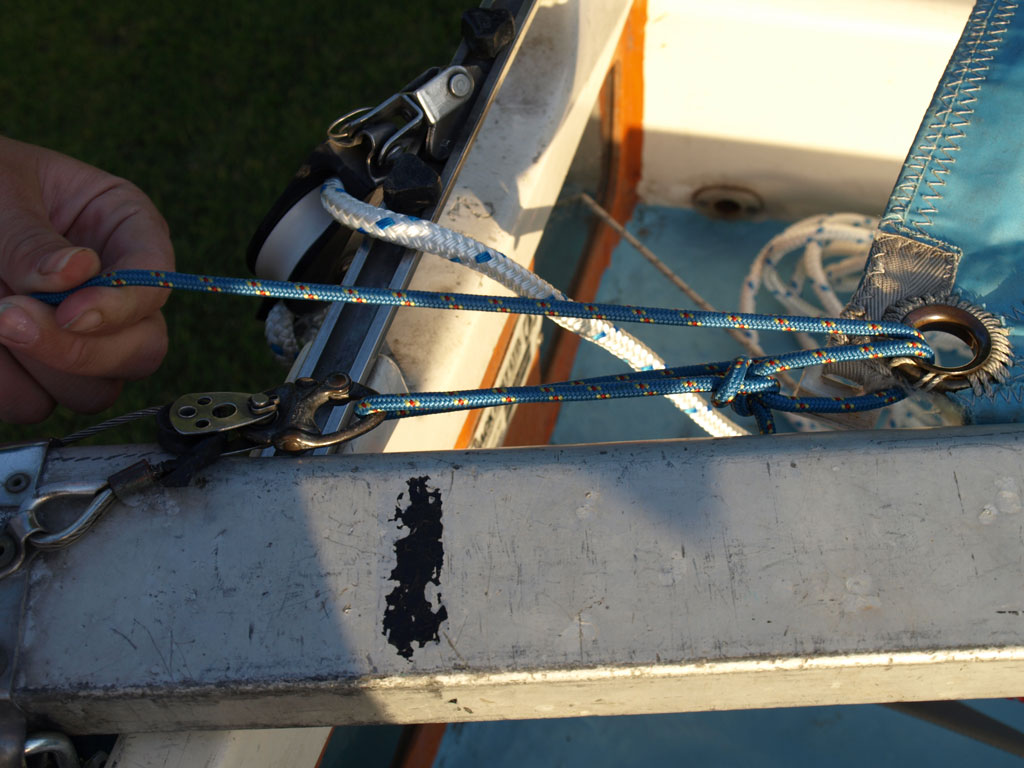

Next, attach the outhaul to the back end of the sail. Because this boom is slightly too large for the sail (actually we think the outhaul rope end shown has been shortened so the working end that clips onto the clew of the sail is too short), we took a rope from the sail to the shackle of the outhaul (Photo 40). This rope can be tied off in different ways, but if you run it around a couple of times, it becomes a makeshift 2:1 or 4:1 ratio system and you can pull the sail out easier (Photo 41).

Photo 40, attach the outhaul to the back bottom corner

Photo 40, attach the outhaul to the back bottom corner

Photo 41, tie it securely

Photo 41, tie it securely

If you don't have a pulley system, in many Enterprises the outhaul is just tied from the sail to a fixture on the end of the boom. This isn't ideal, as you cannot adjust the outhaul while sailing, and if you are serious about racing you will need to replace this. The outhaul on this boat can be seen in Photo 36.

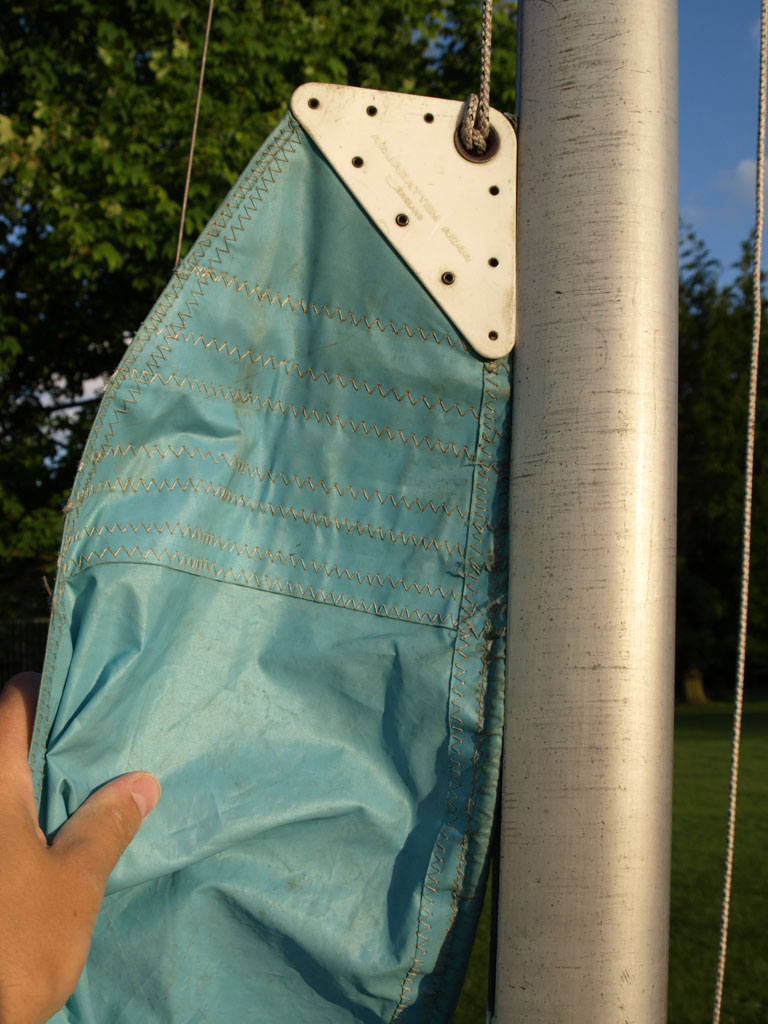

Photo 42, Attach the halyard to the main sail

Photo 42, Attach the halyard to the main sail

Photo 43, feed the mainsail head car up the mast slot

Photo 43, feed the mainsail head car up the mast slot

Now the main sail is ready to go up. Attach it to the end of the halyard (in this case using a stopper, Photo 42), and while one person feeds the luff of the mainsail into the mast track (Photo 43), the other should pull on the other end of the halyard to hoist it (Photo 44). Sails on older boats can be quite hard to hoist - if you are having any trouble hoisting the sail, make sure the mast track is free from any obstructions. Also make sure if there is a turning block at the bottom or top of the mast that it is well oiled and moves freely - this makes the sail pull up the mast much easier. A frayed luff can also make it difficult to hoist the sail.

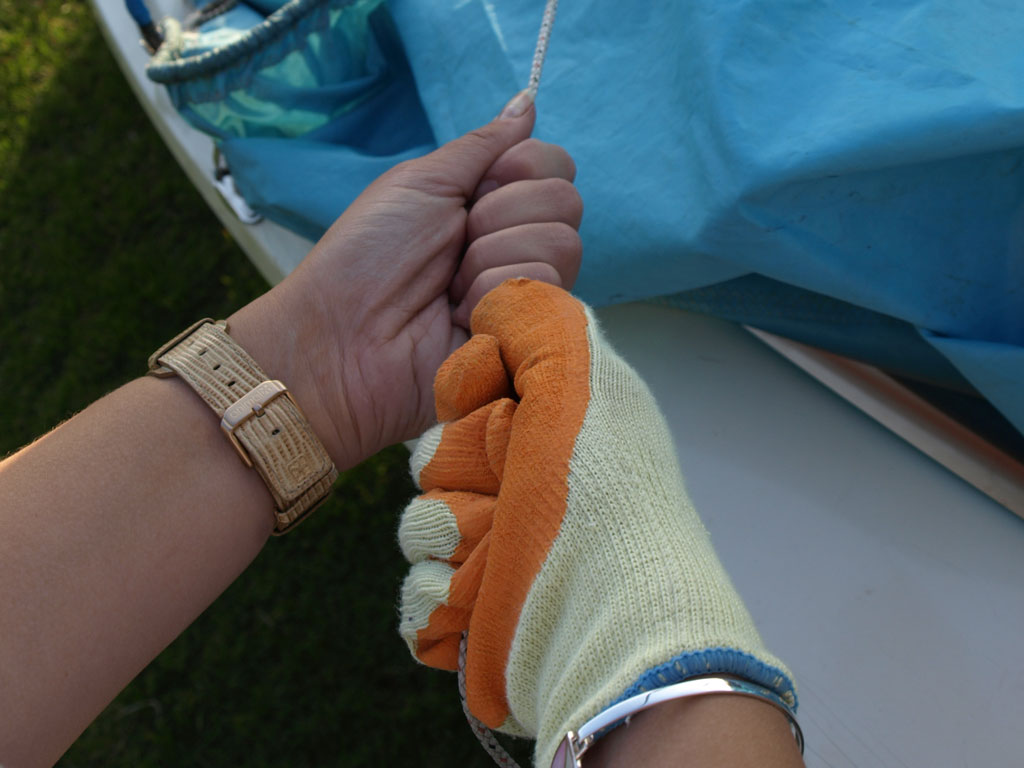

Photo 44, Hoist the mainsail, use gloves if necessary

Photo 44, Hoist the mainsail, use gloves if necessary

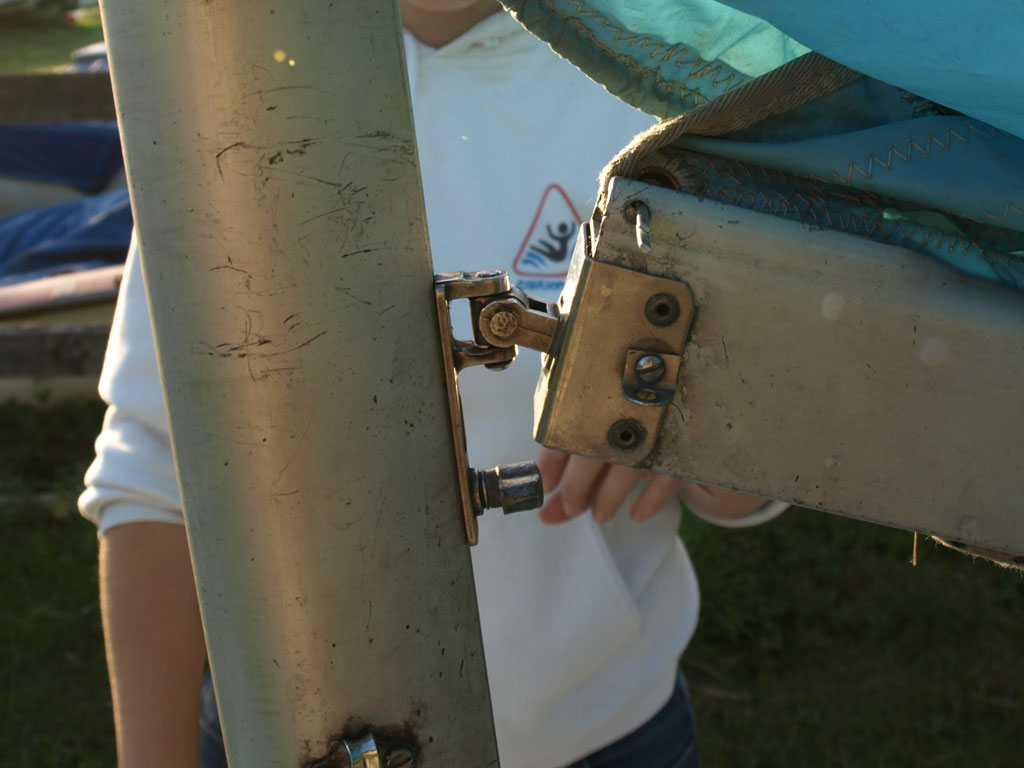

Photo 45, put the boom on the gooseneck

Photo 45, put the boom on the gooseneck

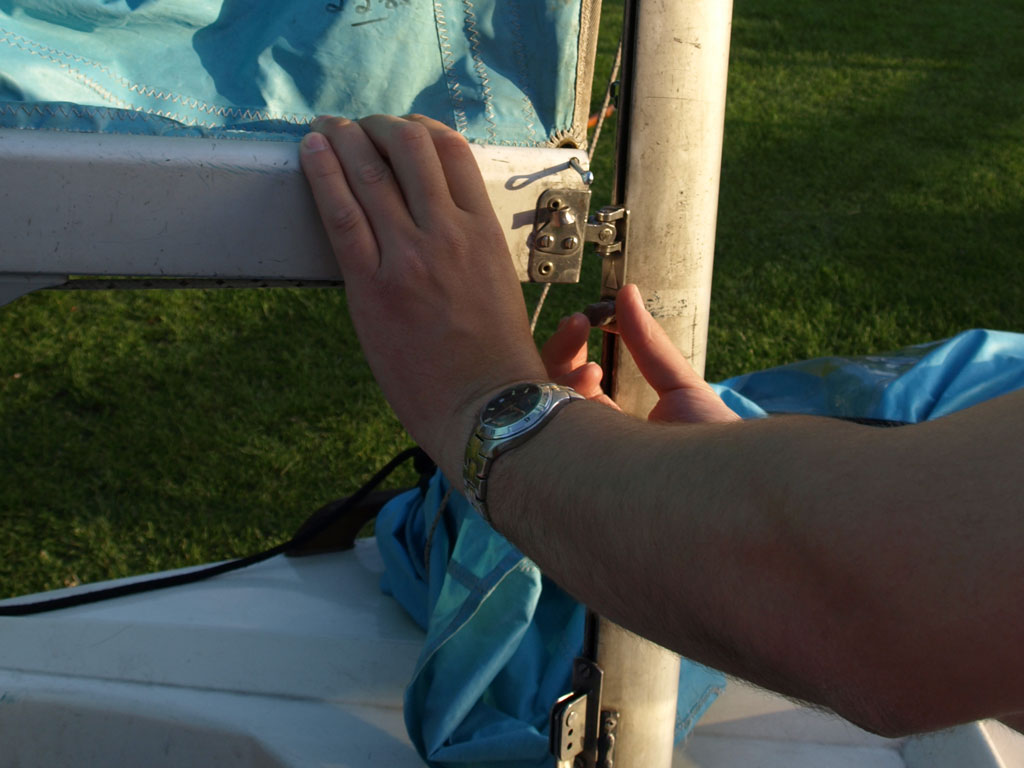

The final part of hoisting is the hardest. This Enterprise has an adjustable goose neck - if this is the case, then put the boom on the gooseneck, untighten it, and move it up as high as possible (Photo 45). Next, finish hoisting the sail to the top of the mast, cleat off the halyard as with the jib halyard (there will usually be a cleat for this), and then pull down on the boom and pull the gooseneck down, with it pulling the luff of the sail taut (Photo 46). This is much easier than putting the gooseneck in a lower position, and trying to pull the sail up the mast and make it taut this way. Tension the outhaul as necessary for wind conditions (Photo 47).

Photo 46, Lower the gooseneck and tighten the luff of the sail

Photo 46, Lower the gooseneck and tighten the luff of the sail

Photo 47, Tighten the outhaul as necessary

Photo 47, Tighten the outhaul as necessary

A downhaul should be used as another sail control for the mainsail - this boat didn't have fittings for one, so we simply took a length of rope from points available and tied down the front corner of the mainsail (Photo 48). If there is not much wind when you plan to sail this may not be necessary. Once again, if you are serious about your sailing or racing, we're sure you'll replace this setup with something more appropriate.

Photo 48, attach the downhaul or cunningham

Photo 48, attach the downhaul or cunningham

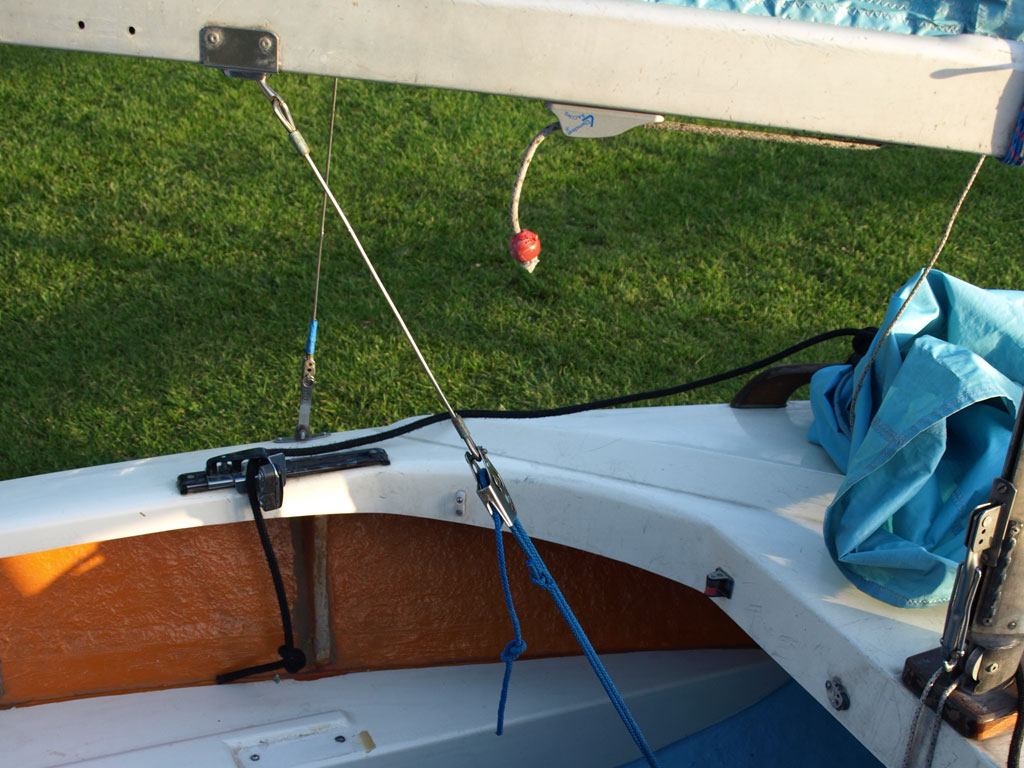

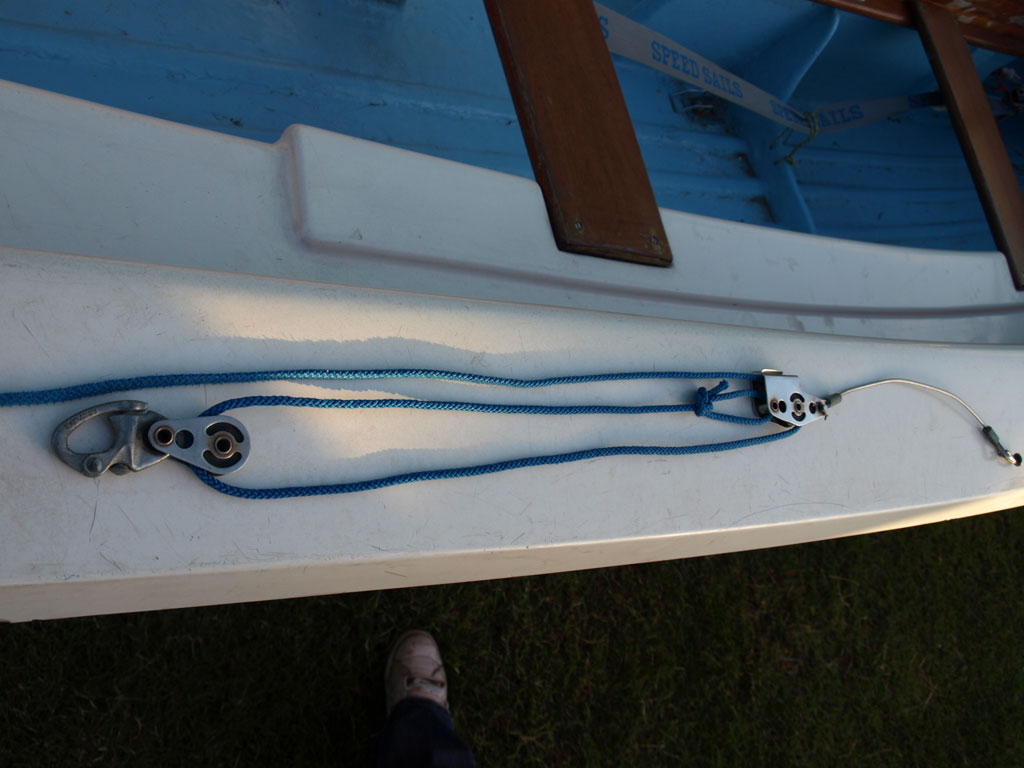

Photo 49, Assemble the kicking strap

Photo 49, Assemble the kicking strap

Next, assemble the kicking strap/boom vang (Photo 49). Once again, there are many different configurations for this in an Enterprise, including various longer setups for single handed sailing. This one however is a simple 2:1 system with a single pulley block and a V-Jammer, assembled as shown. Fix the bottom end to the fitting in the bottom of the boat (in this case on the mast foot, Photo 50), and the top end fits into the fitting on the underside of the boom (Photo 51).

Photo 50, attach the kicker to the mast step

Photo 50, attach the kicker to the mast step

Photo 51, attach the other end to the boom

Photo 51, attach the other end to the boom

Photo 52, the assembled and installed kicking strap

Photo 52, the assembled and installed kicking strap

Rudder

Fit the rudder onto the pintles on the back of the boat (Photo 53). The rudder may come with two ropes - an uphaul and a downhaul. Slot the tiller extension into the top of the rudder, underneath the traveller, and secure the tiller to the rudder (in this case using a split pin). Feed the ropes for the uphaul and downhaul into the boat underneath the traveller, and attach onto the tiller where necessary (Photo 54).

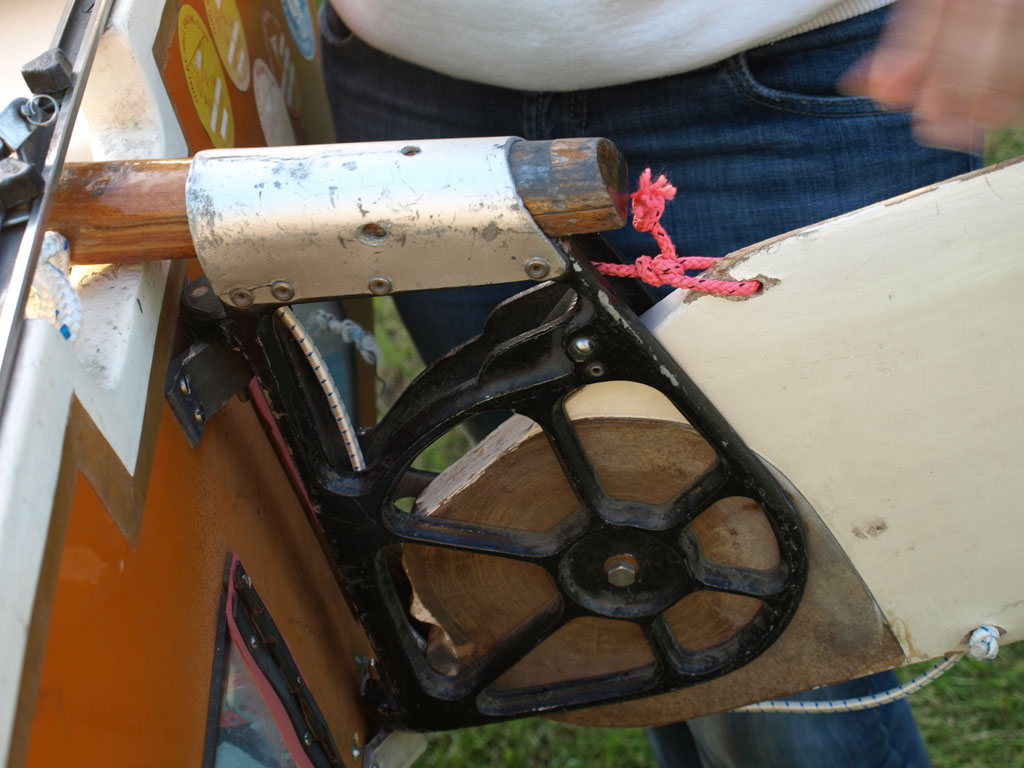

Photo 53,  The rudder attached and tiller inserted

Photo 53, The rudder attached and tiller inserted

Photo 54, the rudder uphaul rope secured

Photo 54, the rudder uphaul rope secured

Summary

So there we have it, a fully rigged Enterprise. Because it's a restricted design rather than a one-design, there are different variations between boats, and we will add some pictures of these variations very soon!

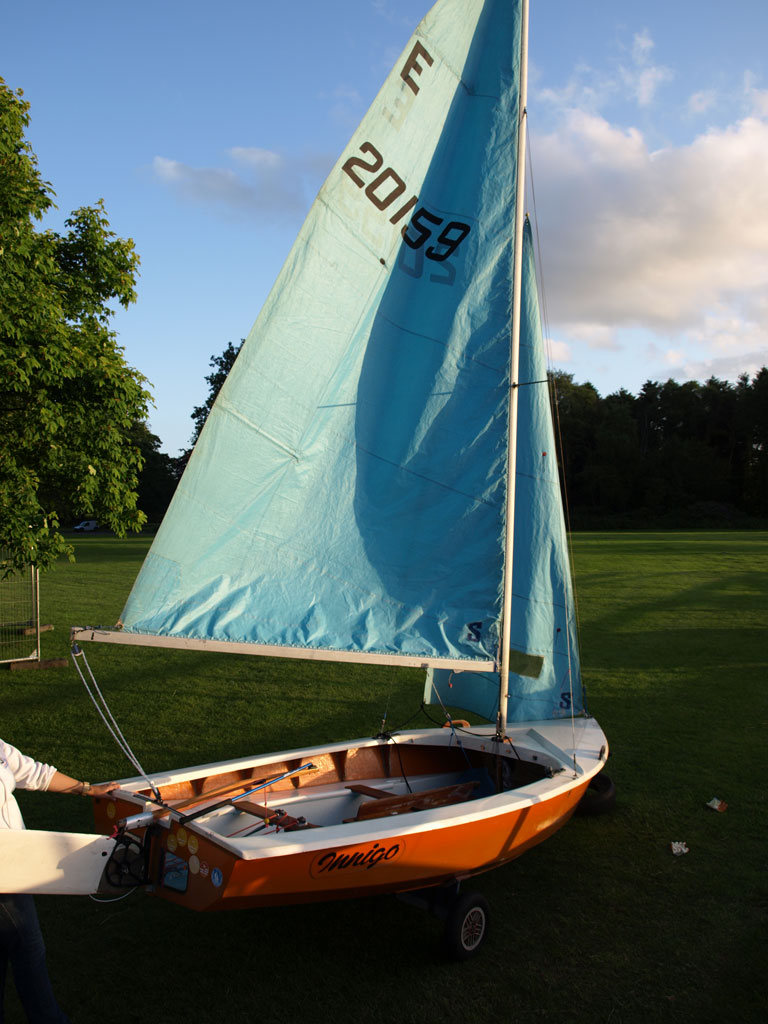

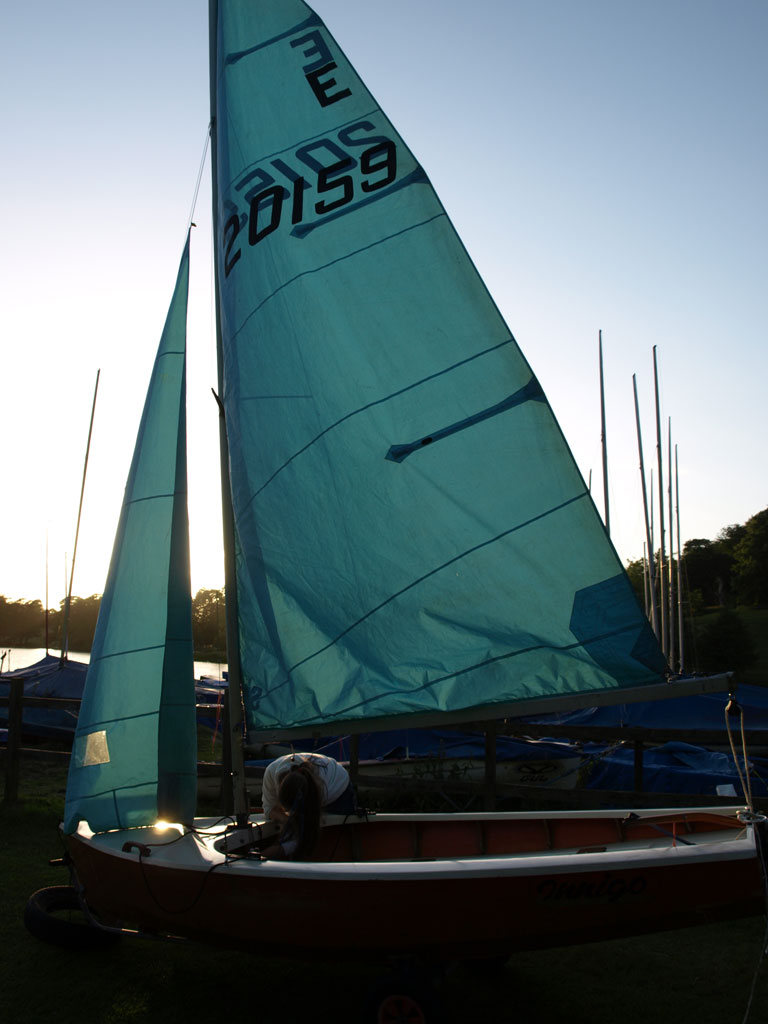

Photo 55, The enterprise, fully rigged

Photo 55, The enterprise, fully rigged

Photo 56, The enterprise, fully rigged

Photo 56, The enterprise, fully rigged
